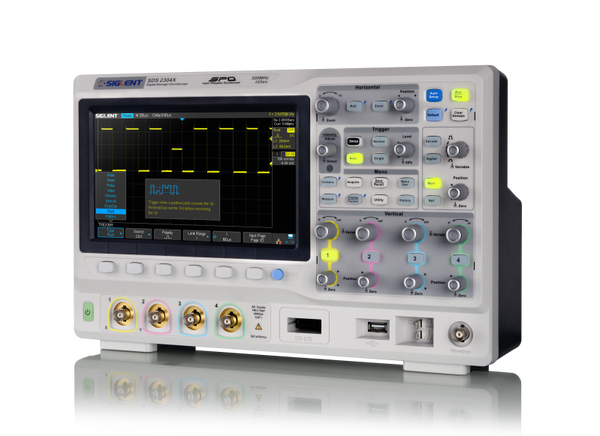

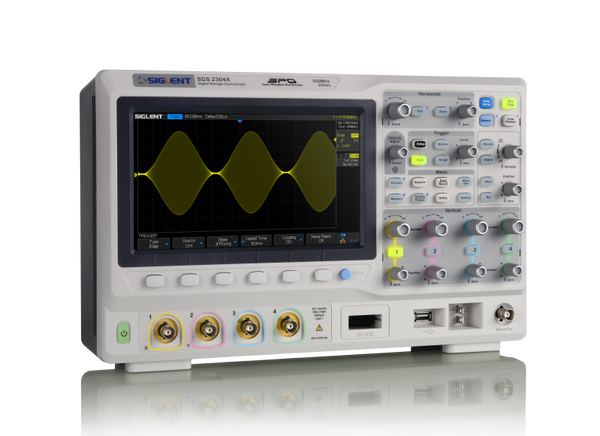

Siglent SDS2304X 300MHz Four channel oscilloscope

Sold out
€2,529.00 €1,770.30

SIGLENT’s SDS2304X Super Phosphor Oscilloscopes with a 300 MHz bandwidth and a maximum sample rate of 2 GSa/s, and comes with a maximum record length of 140 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS2304X series employs a new generation of SPO technology. It has an innovative digital trigger system with high sensitivity and low jitter, and a maximum waveform capture rate of 140,000 wfm/s (normal mode), up to 500,000 wfm/s (sequence mode). It also employs a 256-level intensity grading display with a color temperature mode to help visualize issues quickly. The trigger system supports triggering modes including serial bus and video triggering. The SDS2304X also features a history waveform recording and sequence acquisition for recording and replaying multiple trigger events. Other features include an impressive array of measurement and math capabilities, options for a built-in 25 MHz arbitrary waveform generator, 16 digital channels (MSO), and serial decoding.

Waveform Capture Rate up to 500,000 wfm/s

With a waveform capture rate of up to 500,000 wfm/s (sequence mode), the oscilloscope can easily capture unusual or small probability events

Record Length of up to 140 Mpts

The hardware-based zoom and deep memory (140 Mpts) enables the use of a high sampling rate to capture more of the signal, and then quickly zoom in to focus on the area of interest

Key Features

  • Intelligent triggers: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported)
  • Serial bus triggering and decoder, supports protocols IIC, SPI, UART, RS232, CAN and LIN (Optional)
  • Low background noise, includes 1 mV/div to 10 V/div voltage scales
  • 10 types of one-button shortcuts, including Auto Setup, Default, Cursors, Measure, Roll, History,
  • Display/Persist, Clear Sweeps, Zoom and Print
  • Segmented acquisition (Sequence) mode divides the maximum record length into multiple segments (up to 80,000) according to trigger conditions set by the user. The resulting acquisition has a very small dead time
  • History waveform record (History) function, the maximum recording length is 80,000 frames
  • Automatic measurement function on 37 parameters, supports statistics, Gating measurements, Math measurements, History measurements and Ref measurements
  • Math function (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
  • High-speed hardware based Pass/ Fail function
  • 16 Digital channels (MSO option), Maximum waveform capture rate up to 500 MSa/s, Record length up to 14 Mpts/ch



Accessoires Included:

1 x Siglent SDS2304X Oscilloscope
4 x 300MHz probes
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

SDS2000X User Manual
PDF – 5,3 MB 1190 downloads
SDS2000X Series Datasheet
PDF – 3,2 MB 1100 downloads
SDS2000X Programming Guide
PDF – 3,4 MB 976 downloads
SDS2000X Service Manual
PDF – 1,4 MB 999 downloads
