Siglent SLA1016 16 Channel logic probe module

Siglent SLA1016 16 Channel logic probe module
€328.00

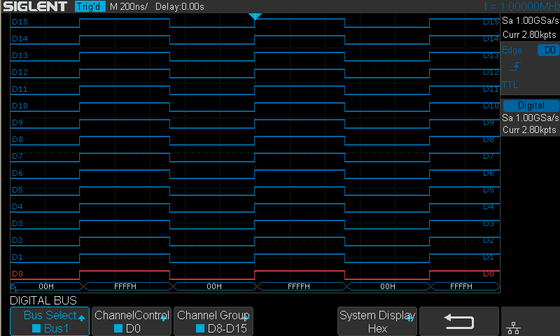

The Siglent SLA1016 Logic Probe expands your oscilloscope into a full Mixed Signal Oscilloscope (MSO) with 16 digital channels for capturing and analyzing analog and digital signals at the same time. Compatible with SDS1000X HD, SDS800X HD, SDS2000X-E, and SDS1000X-E series, it’s ideal for debugging UART, SPI, I²C, and embedded systems.

Siglent SLA1016 – 16-Channel Logic Probe

The Siglent SLA1016 is a high-performance 16-channel logic probe designed for use with Siglent mixed signal oscilloscopes. It allows you to simultaneously capture and analyze both analog and digital signals, providing deep insight into today’s complex embedded designs.

Key Features

  • 16 digital input channels with flexible threshold adjustment

  • Compatible with SDS1000X HD, SDS800X HD, SDS2000X-E, and SDS1000X-E series oscilloscopes

  • Supports advanced trigger and decode functions for serial buses

  • Easy connection with labeled leads for fast setup

Firmware Upgrade Information

To ensure full functionality, the SLA1016 requires the correct digital firmware in addition to the oscilloscope’s main system firmware.

  • The latest release, Version 8.2.3 (January 2024), adds support for SDS1000X HD and SDS800X HD series scopes.

  • Older revisions, such as 8.1.16 (May 2019), optimized the FPGA and fixed MSO measurement bugs.

  • Versions earlier than 8.1.16 are only compatible with specific oscilloscope firmware and must be upgraded in stages.

Compatibility Highlights

  • SDS1000X HD / SDS800X HD: Requires SLA1016 v8.2.3 with scope firmware ≥ v1.1.0.2.

  • SDS2000X-E: Compatible with SLA1016 v8.1.16 when scope firmware ≥ v1.1.19R2.

  • SDS1000X-E: Compatible with SLA1016 v8.1.16 when scope firmware ≥ v6.1.33.

Update Instructions

  • Always check your scope’s firmware version before upgrading the SLA1016.

  • If your SLA1016 is older than v8.1.16, it must first be updated using an older compatible scope (SDS1000X-E < v6.1.33 or SDS2000X-E < v1.1.18).

  • After updating the SLA1016, you can then safely upgrade the oscilloscope to the latest firmware.

  • Updates are applied through the oscilloscope’s Digital → System → Upgrade menu using a FAT32-formatted USB stick.

With the correct firmware installed, the SLA1016 unlocks reliable digital acquisition and full MSO capabilities on your Siglent oscilloscope.

Download the latest SLA1016 firmware (v8.2.3)

SLA1016 Kit Contents

  • SLA1016 Probe Unit (main logic probe module)

  • SUBS Interface Cable (connects probe to the oscilloscope’s digital input port)

  • Flat Wire Cable (for grouped digital channel connections)

  • Flying Wire Leads (for individual channel access and ground connections)

  • Probe Clips (for attaching flying leads to test points)
