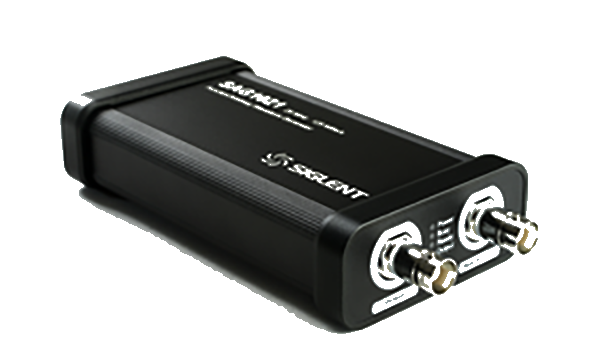

Siglent SAG1021 25MHz External arbitrary waveform generator
€239.00
Siglent SAG1021 is a 25Mhz function / arbitrary waveform generator For use with the four channel SDS1000X-E, SDS2000X-E. SDS800X HD
Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms.The arbitrary waveforms can be accessed and edited by the EasyWave PC software.
| Parameters : | SAG1021 |
|---|---|
| Channels | 1 |
| Max. Output Frequency | 25 MHz |
| Sampling Rate | 125 MSa/s |
| Frequency Resolution | 1 μHz |
| Frequency Accuracy | ±50 ppm |
| Vertical Resolution | 14-bits |
| AmplitudeRange | -1.5 ～ +1.5 V (50Ω) / -3 ～ +3 V (High-Z) |
| Waveform Type | Sine, Square, Ramp, pulse, Noise, DC and 45 built-in waveforms |
The kit includes:
1 x License key ( For SDS1000X-E 4 Channel and SDS2000X-E oscilloscopes )
1 x SAG1021
1 x USB Cable
