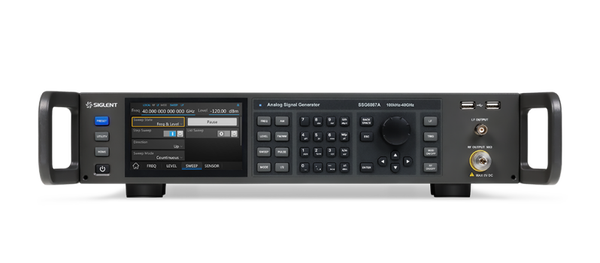

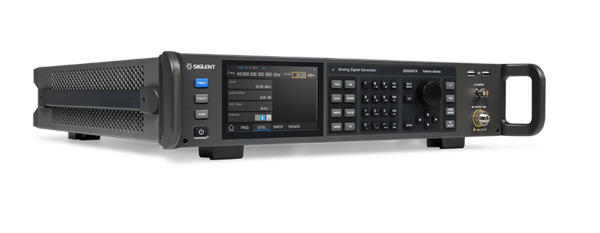

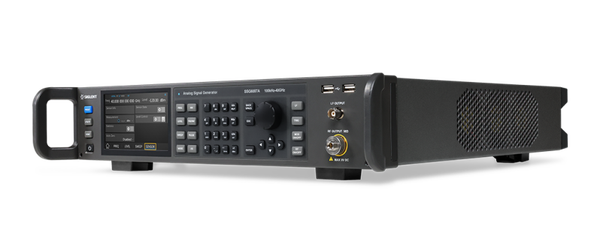

Siglent SSG6085A 100 kHz-20 GHz CW MODE Signal generator
Siglent's new SSG6085A 100 kHz-20 GHz Signal generator meets the stringent requirements of microwave and millimeter wave testing with reliable performance and provide another choice in size, speed and cost, especially suitable for applications that pursue program efficiency, but have limited testing budget and space.
The Siglent SSG6085A RF Signal Generator supports AM and pulse modulation, pulse sequence generation, power meter control and other functions. With the built-in standard OCXO module high-precision and high stable signal output is ensured. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source. It is suitable for various application scenarios such as R&D and production.
SSG6085A microwave signal generator has a output frequency range from 100 kHz to 20GHz, supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.
Maxpower, SSG6085A
SSG6085A Features and Benefits
- Frequency up to 20 GHz.
- 0.01 Hz frequency setting resolution.
- Level setting range: -130 dBm ~ 24 dBm.
- Phase Noise: -135 dBc / Hz @ 1 GHz,
20 kHz offset (typ..) - Level error ≤ 0.7 dB (typ.).
- Provides AM analog modulation with
internal, external or Int+Ext source. - Single pulse, double pulse and pulse
train generator (option). - The power meter control kit can easily
use the power meter to measure power,
control power output and correct line loss. - 5 inch TFT capacitive touch screen,
mouse and keyboard supported. - Web browser remote control on PC and

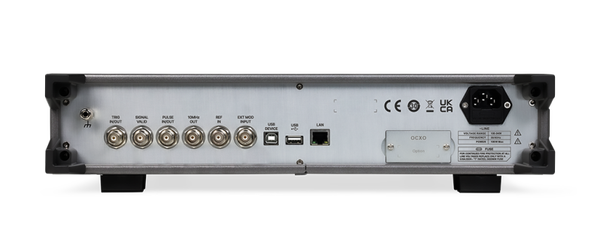

mobile terminals. - Standard interface includes USB Host,
USB Device (USB TMC), LAN (VXI-11,
Socket, Telnet). Optional interface: GPIB.
Excellent SSB Phase Noise
The SSG6000A signal generator is built to deliver outstanding signal purity across a broad frequency range of 100 kHz to 40 GHz, even at high output power levels. Excellent phase noise of -135 dBc/Hz, low sub harmonic signal components of < –80 dBc and low broadband noise of –155 dBc gives you confidence that you are testing your device and not the limits of your instrumentation. Coupled with exceptional frequency and power stability, the SSG6000A is a great solution for applications including LO emulation, receiver, ADC/DAC, and components testing.
Pulse Modulation
SSG6000A supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. Pulse modulation on/off ration is more than 80 dB, and the rise/fall time is less than 15 ns. SSG6000A can be used as pulse modulation signal source or LO to simulate various radar echo signals.
Optional license required
Pulse Train Generator
SSG6000A generates staggered pulse groups and pulse pauses. The pulse width and the pulse pause can be set. independently and separately for each pulse. Pulse train generator has pulse width of 20 ns ~ 300 s and as many as 2047 different pulses. The pulse repetition period can be changed from 1 to a maximum of 65,535 which produces a very long pulse train that can be used for testing.
Optional license required
| Model | SSG6085A |
|---|---|
| Frequency Range CW MODE | 100 kHz-20GHz |
| Frequency Resolution 0.01 Hz | 0.01 Hz |
| Amplitude Resolution | 0.01 dB |
| Level error | ≤ 0.7 dB(typ.) |
| Phase noise | -135 dBc/Hz @1 GHz, offset 20 kHz (typ.) |
| Display | 5 inch capacitance touch screen, RGB (800*480) |
Standard Accessories:
Optional Accessories:
-
Siglent USB-GPIB Adapter €135.00
