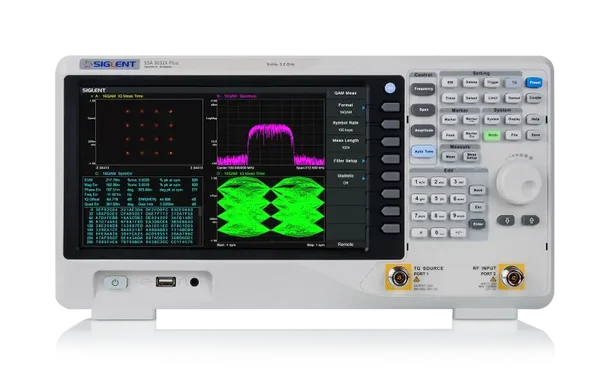

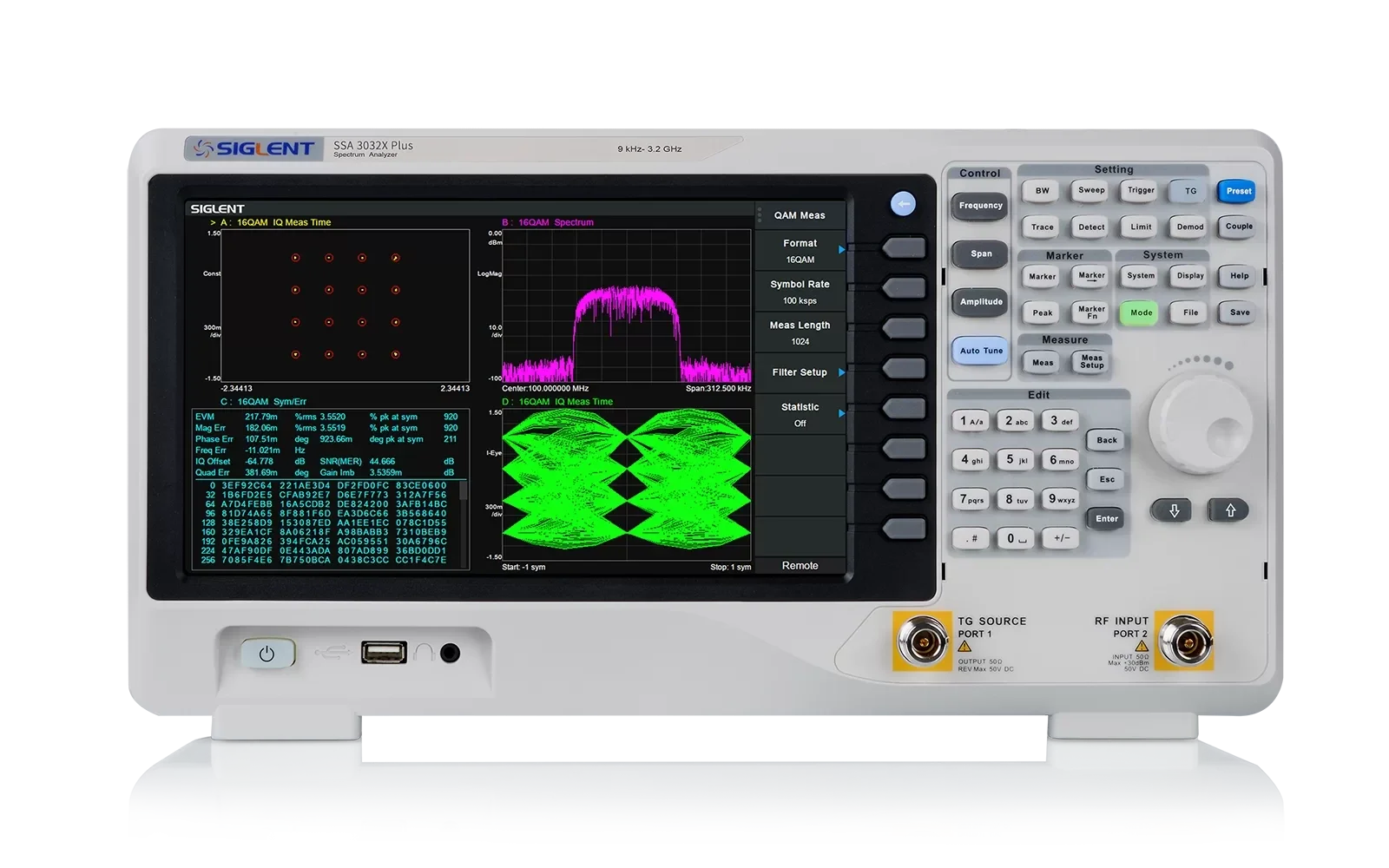

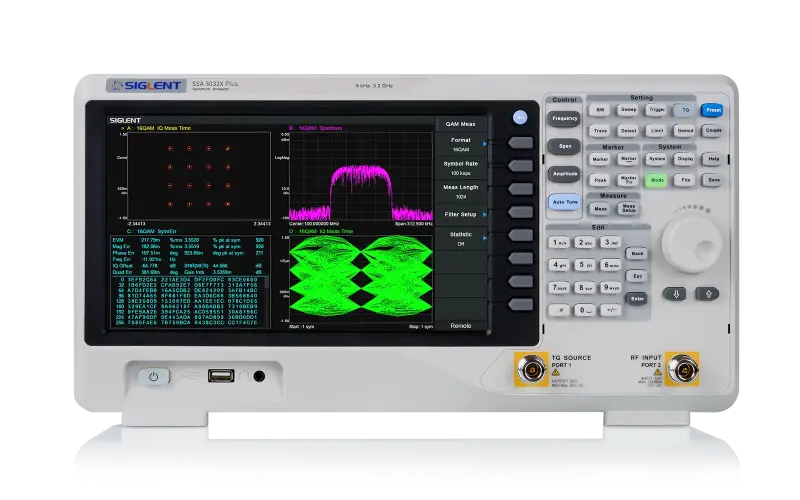

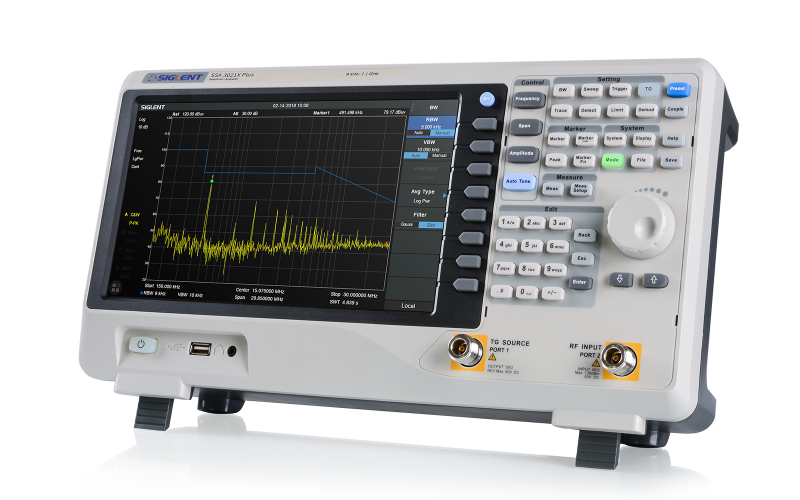

Siglent SSA3075X PLUS 7.5GHz spectrum analyzer + FREE TG LICENSE
Siglent SSA3075X PLUS 7.5GHz spectrum analyzer is the newest analyzer that represent the highest bandwidth and can be also be extended with Vector Signal Analysis and other options to increase versatility for meeting the unique challenges of RF circuit design.

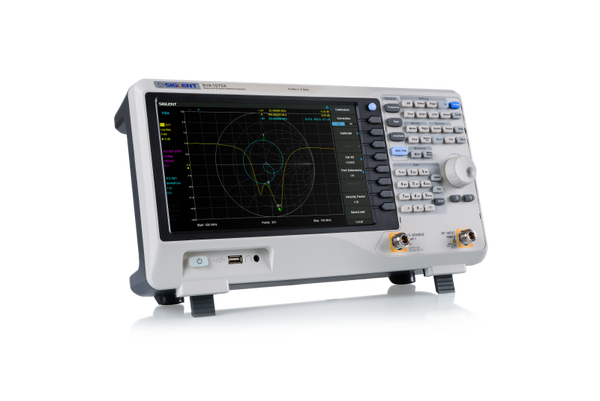

The SIGLENT SSA3075X spectrum & vector network analyzer is a powerful and flexible tool for RF signal and network analysis. With a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: the base model are a spectrum analyzer and a vector network analyzer, optional functions include a distance to fault locator, a vector signal modulation analyze r. Applications include broadcast monitoring / evaluation, site surveying, S parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre compliance test, research and development, education, production, and maintenance.
10.1 lnch Display with Multi-Touch Screen

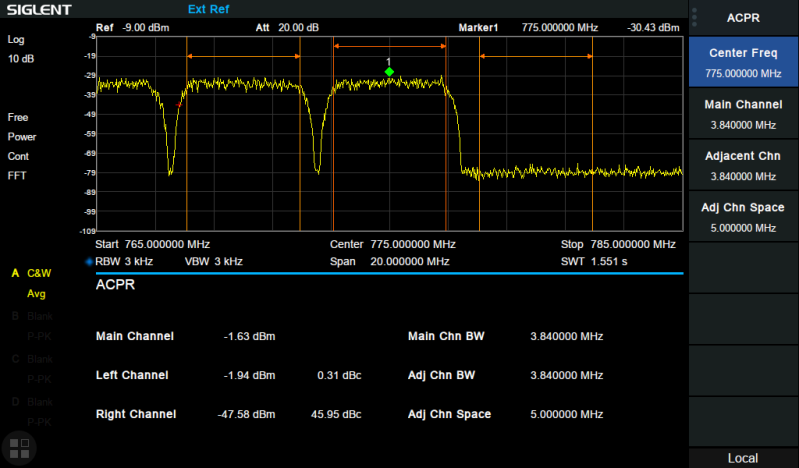

ACPR in Advanced Measurement Kit
Features and Benefits
- Spectrum Analyzer Frequency Range from 9 kHz up to 7.5 GHz
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Preamplifier Standard
- Tracking Generator (Opt.)
- Analog and Digital Signal Modulation Analysis Mode (Opt.)

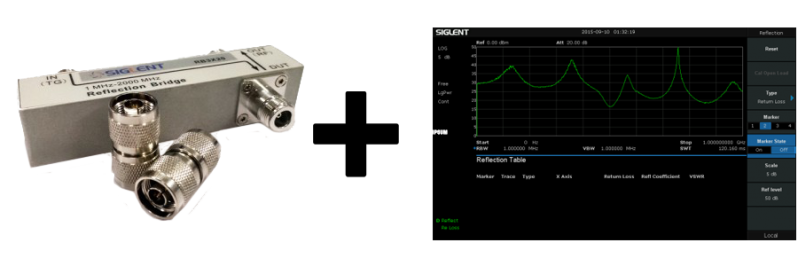

- Reflection Measurement Kit (Opt.)

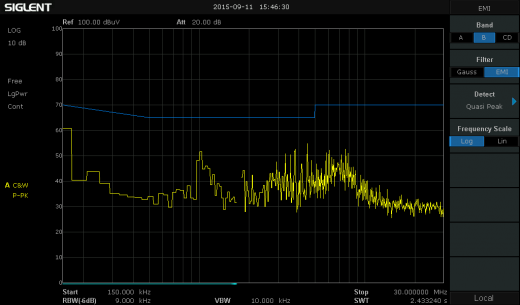

- EMI Filter and Quasi-Peak Detector Kit(Opt.)
- Advanced Measurement Kit (Opt.)
- 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and
File Operation

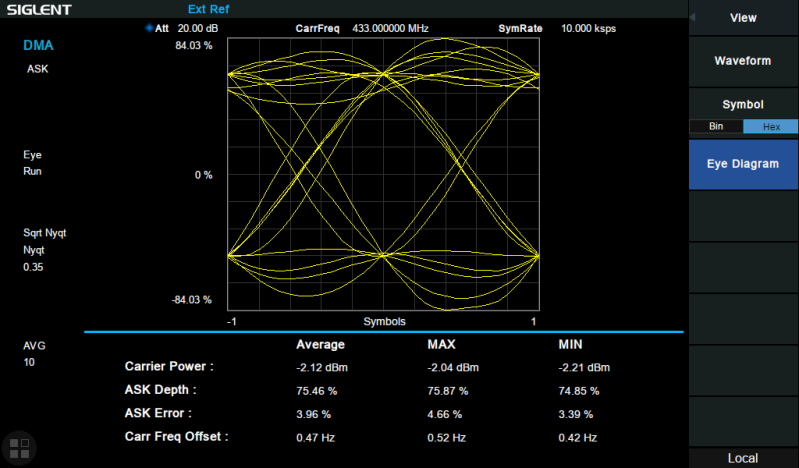

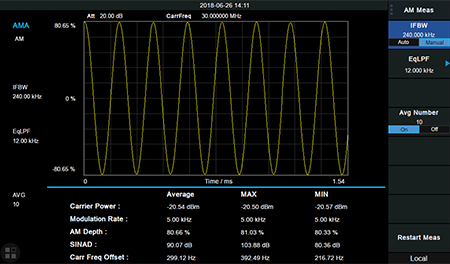

Modulation Analysis Mode
AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis, EVM evaluation
| Model | SSA3021X PLUS | SSA3032X PLUS | SSA3075X PLUS |
|---|---|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz~1.5 GHz | 9 kHz~3.2 GHz | 9 kHz~7.5 GHz |
| Resolution Bandwidth | 1 Hz~1 MHz | 1 Hz~1 MHz | 1 Hz~3 MHz |
| Displayed Average Noise Level | -161 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
| SSB Phase Noise | <-98 dBc/Hz | <-98 dBc/Hz | <-98 dBc/Hz |
| Total Amplitude Accuracy | < 0.7 dB | < 0.7 dB | < 0.7 dB |
| Tracking Generator | 100 kHz ~ 2.1 GHz | 100 kHz~3.2 GHz | 100 kHz~7.5 GHz |
| Touch Screen | Multi Touch, Mouse and Keyboard supported | Multi Touch, Mouse and Keyboard supported | Multi Touch, Mouse and Keyboard supported |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Reflection Measurement | VSWR measurement using Reflection Bridge | VSWR measurement using Reflection Bridge | VSWR measurement using Reflection Bridge |
| EMI Test | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Modulation Analysis | AM, FM; ASK, FSK, MSK, PSK, QAM | AM, FM; ASK, FSK, MSK, PSK, QAM | AM, FM; ASK, FSK, MSK, PSK, QAM |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) | LAN, USB Device, USB Host (USB-GPIB) | LAN, USB Device, USB Host (USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer | NI-MAX, Web Browser, Easy Spectrum software, File Explorer | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
Accessoires Included:
1 x Siglent SSA3075X PLUS 9kHz - 7.5 GHz
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
