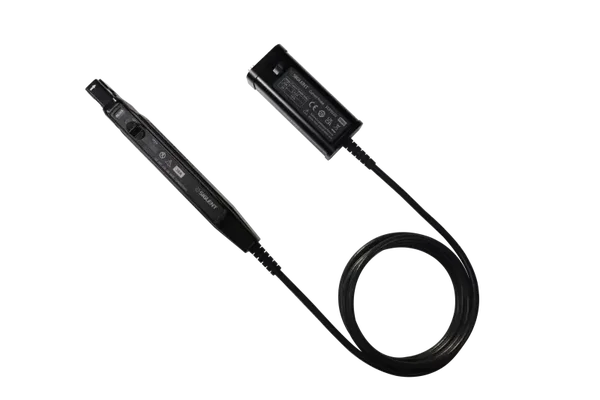

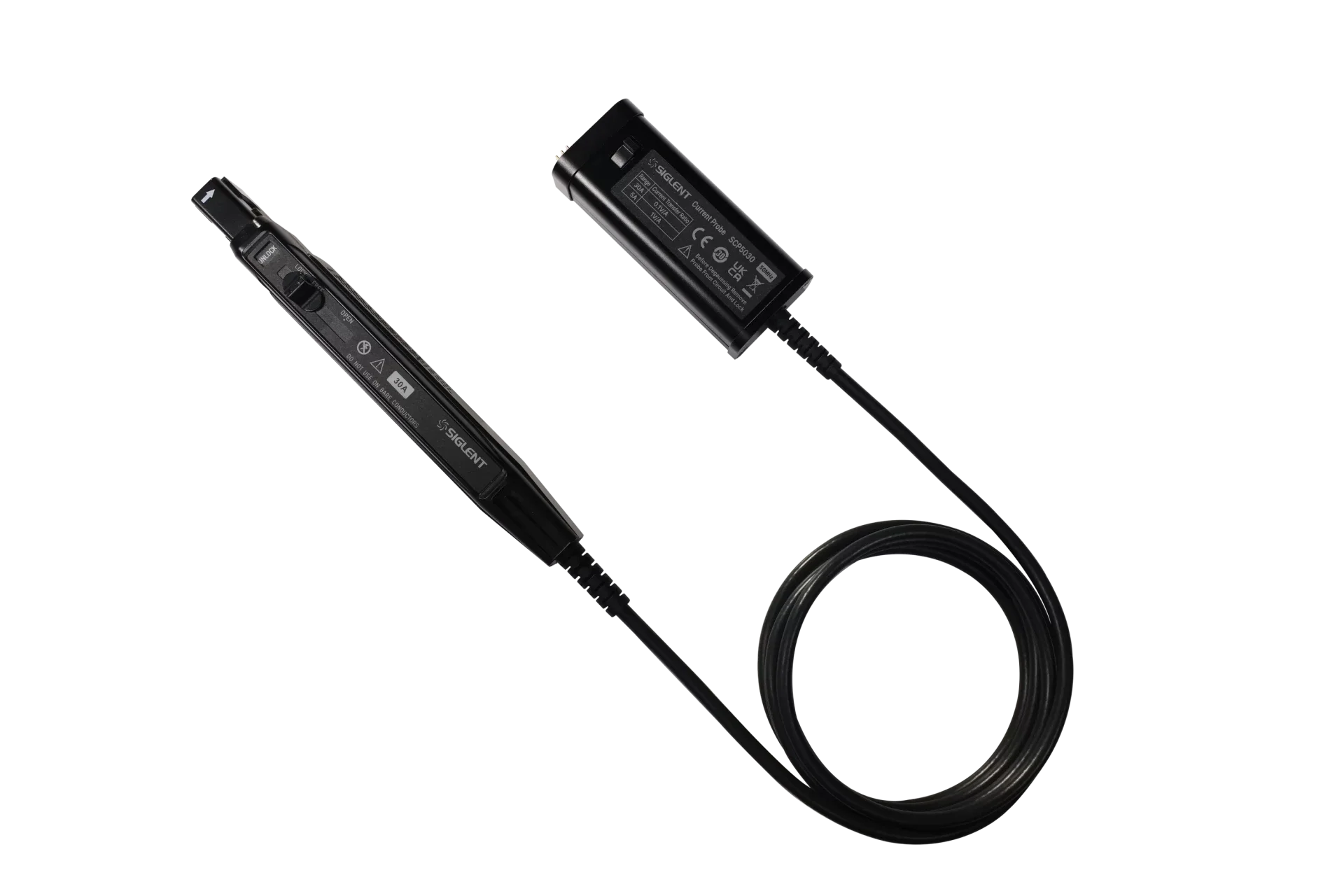

Siglent SCP5030 DC-50MHz Current Probe
The SCP5030 current probe is a wide band width DC/AC active current probe, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance SAPBUS input
The Siglent SCP5030 is a premium current probe designed for accurate and efficient current measurements in both DC and AC applications. With a bandwidth of up to 50 MHz and a maximum continuous input range of 30 Arms, this probe is ideal for a wide range of applications, including power electronics, industrial controls, and electronic engineering experiments. Its compact design and advanced features ensure precision, reliability, and ease of use.
Key Features:
- Wide bandwidth: DC to 50 MHz
- High accuracy: ±1% ±1 mA
- Two measurement ranges for optimal resolution
- Low noise and minimal circuit insertion loss
- Over-current protection with popup indicators
- Automatic degaussing and zeroing for consistent measurements
- Direct power supply from oscilloscope via SAPBUS interface
Applications:
- Power supply design and testing
- LED lighting and inverter development
- Semiconductor device evaluation
- Electric vehicle and renewable energy system testing
| Specification | SCP5030 |
|---|---|
| Bandwidth (-3 dB) | DC - 50 MHz |
| Rise Time | ≤ 7 ns |
| Continuous Maximum Input | 30 Arms |
| Max Peak Current | 50 Apk |
| Resolution | 1 mA |
| Accuracy (DC, 45-66 Hz) | ±1% ±1 mA |
| Input Resistance | Reference |
| Operating Temperature | 0 - 40°C |
| Power Supply | Via SAPBUS from oscilloscope |
