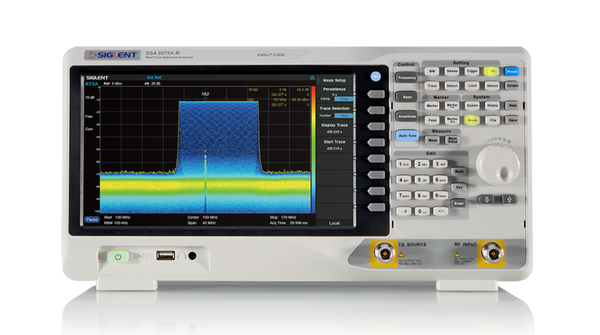

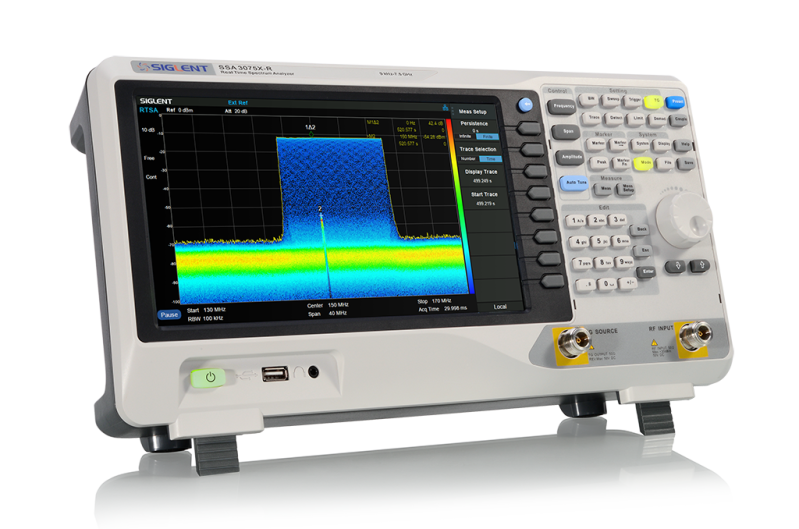

Siglent SSA3075X-R 7.5GHz Real Time spectrum analyzer
Siglent SSA3075X-R 7.5GHz Real Time spectrum analyzer is a powerfull and flexible tool for complex RF spectrum and signal analysis. SSA3000X-R Series included features VNA and DTF functions at no charge
The SIGLENT SSA3075X-R Real Time spectrum & vector network analyzer has a a capability of 40 MHz analysis bandwidth and 7.2 μs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. The Siglent SSA3075X-R also provides standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI measurement. Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

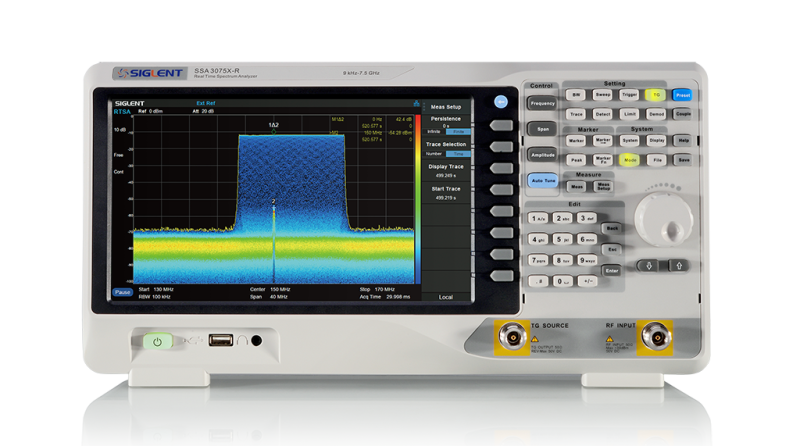

Real Time Analysis Mode
Density,3D,Spectrogram,PvT,Multi-view and dimensions to monitor complex signals

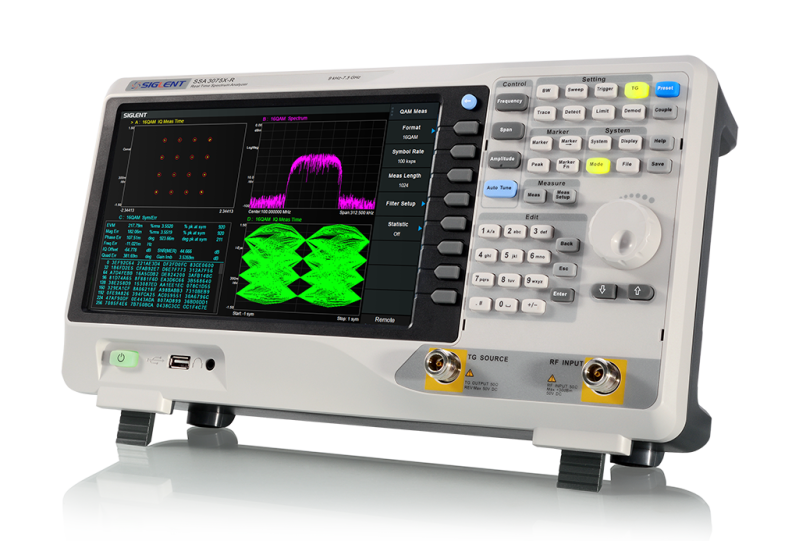

Modulation Analysis Mode
AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis and EVM evaluation, and Data recording to PC. The analysis BW is same with real-time BW in RTSA mode
SSA3075X-R Features and Benefits
- Spectrum Analyzer Frequency Range from 9 kHz up to 7.5 GHz
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Pre-amplifier Standard
- Tracking Generator Standard
- Up to 40 MHz Real Time Analysis Bandwidth (Optional.)
- 100% POI 7.20 μs, Dynamic Range 60 dB
- Multi-view for Density, Spectrogram, PvT and 3D
- Advanced Measurement Kit (Optional.)
- Reflection Measurement Kit (Optional.)
- Modulation Analysis Mode (Optional.)
- EMI Measurement Mode (Optional.)
- 10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and
- File Operation
EMI Measurement Mode
EMI Measurement with CISPR 16-1-1 EMI filter ,Quasi-peak Detector, and pre-stored standards.
| Model | SSA3075X-R |
|---|---|
| Frequency Range | 9 kHz~7.5 GHz |
| Resolution Bandwidth | 1 Hz~3 MHz |
| Displayed Average Noise Level | -165 dBm/Hz |
| SSB Phase Noise | <-98 dBc/Hz |
| Third-order intercept(TOI) | +14 dbm |
| Total Amplitude Accuracy | < 0.7 dB |
| Tracking Generator | 100 kHz - 7.5 GHz |
| Real Time Band Width | 25 MHz, 40 MHz (Option) |
| SFDR | 60 dB |
| 100% POI | 7.20 μs |
| 7.20 μs | 7.20 μs |
| RTSA Measurement | Density, Spectrogram, 3D, PvT |
| Touch Screen | Multi Touch, Mouse and Keyboard supported |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Modulation Analysis | AM, FM, ASK, FSK, MSK, PSK, QAM |
| Reflection Measurement | VSWR measurement using Reflection Bridge |
| EMI Measurement | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
Accessoires Included:
1 x Siglent SSA3075X-R 9kHz - 7.5 GHz
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
