Siglent SHA850-BIAS DC Bias Out license option

The Siglent SHA850-BIAS is an accessory for the SHA850 series spectrum analyzers, specifically designed to provide a DC bias output. This device allows users to inject a DC bias voltage into an RF signal path without interfering with the RF signal itself. Key features of the SHA850-BIAS include:

1. DC Bias Injection: It allows for the injection of a DC bias into an RF signal path. This is particularly useful for powering active devices such as amplifiers, antennas, or other components that require a DC supply while they are being tested or used in a circuit.

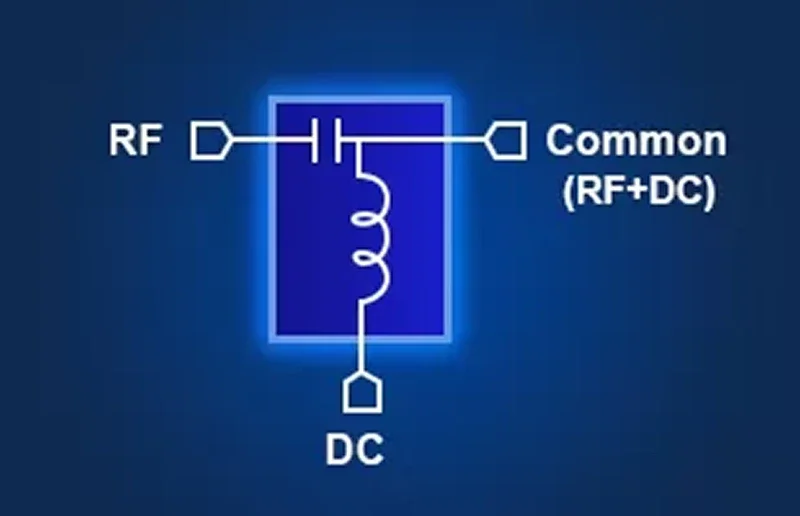

2. Separation of DC and RF Signals: The bias-tee effectively separates the DC and RF components of the signal, ensuring that the DC bias does not interfere with the RF signal's characteristics and vice versa. This separation is critical for accurate signal analysis and for the proper functioning of RF circuits.

3. Wide Frequency Range: The SHA850-BIAS typically supports a wide frequency range, allowing it to be used in various applications involving different RF frequencies.

4. Impedance Matching: It is designed to maintain proper impedance matching in the signal path, minimizing reflections and losses that could otherwise affect signal integrity.

5. Versatility: It can be used in a variety of applications, including testing of RF amplifiers, antennas, mixers, and other active RF components. It is also useful in experimental setups where a DC bias needs to be applied to a device under test without affecting the RF measurements.

In summary, the Siglent SHA850-BIAS is a versatile accessory that enhances the functionality of the SHA850 spectrum analyzers by enabling the injection of DC bias into RF signal paths, making it an essential tool for comprehensive RF testing and analysis.
