Siglent ANT-DA1 Directional Antenna Suit, ( N type )
€6,050.00

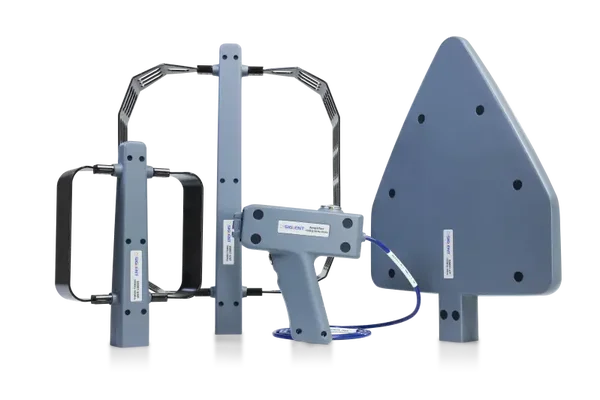

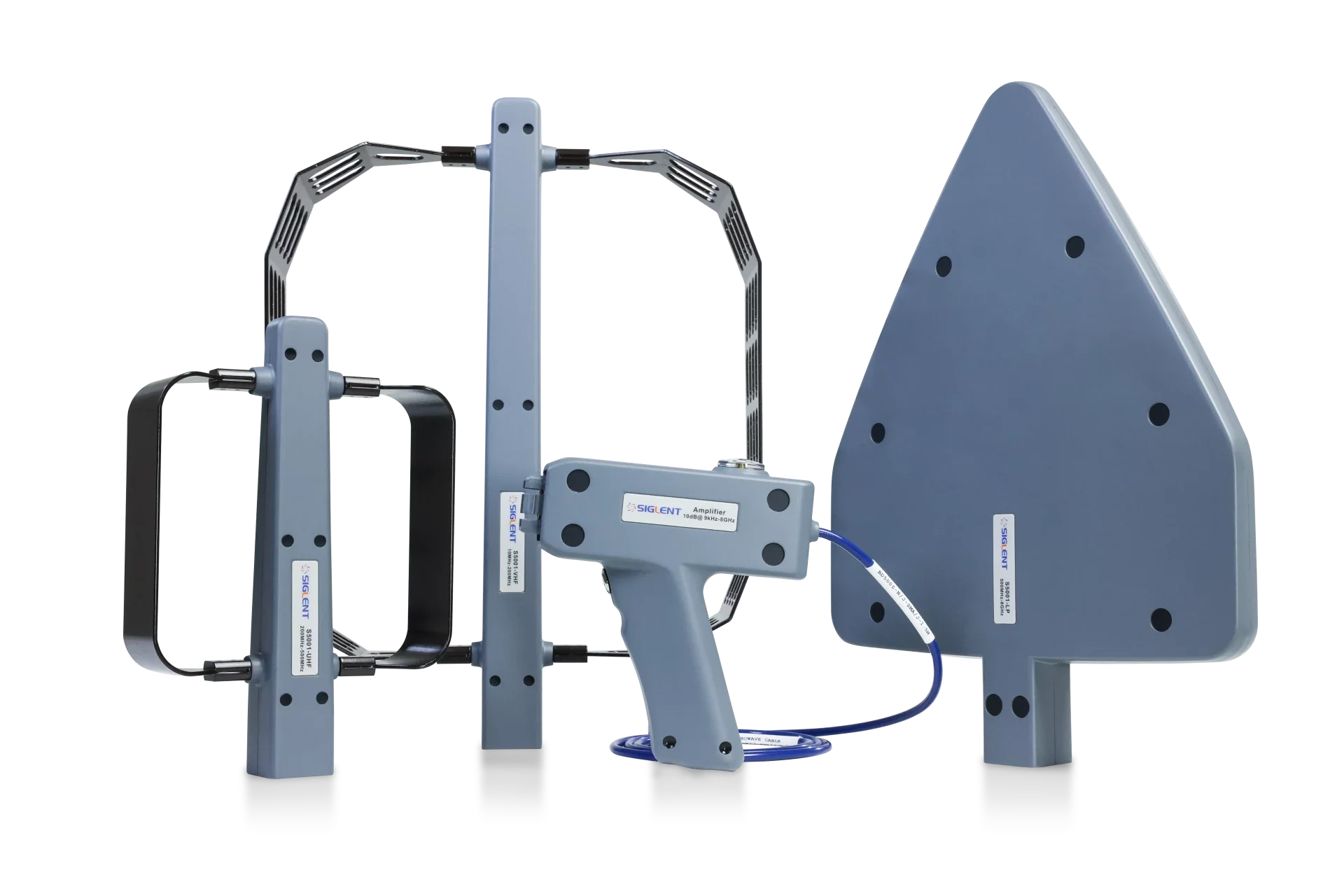

The Siglent ANT-DA1 is a Directional Antenna Suit with 3 antennas and a Amplifier handle.
Siglent ANT-DA1 Directional Antenna Suite
The Siglent ANT-DA1 is a comprehensive directional antenna suite designed for use with the SHA800A series spectrum analyzers and other compatible devices. This suite includes three different antennas covering a wide frequency range and an amplifier handle. Below are the details of the components and their specifications:
Components
| Component | Frequency Range |
|---|---|
| ANT-DA11 | 10 MHz - 200 MHz |
| ANT-DA12 | 200 MHz - 500 MHz |
| ANT-DA13 | 500 MHz - 8 GHz |
Amplifier Handle
| Feature | Specification |
|---|---|
| Gain | 12 dB @ 1 GHz (typical) |
Performance Specifications
| Specification | Value |
|---|---|
| Antenna Gain | 10 dB (typical) |
| SWR | < 1:1.9 (typical) |
| Impedance | 50 Ohm, N-type female connector |
| Polarization | Horizontal and Vertical |
This directional antenna suite is essential for applications requiring precise directional measurements over a broad range of frequencies. The included amplifier handle aids in boosting weak signals, making it highly suitable for fieldwork and complex RF analysis tasks.
