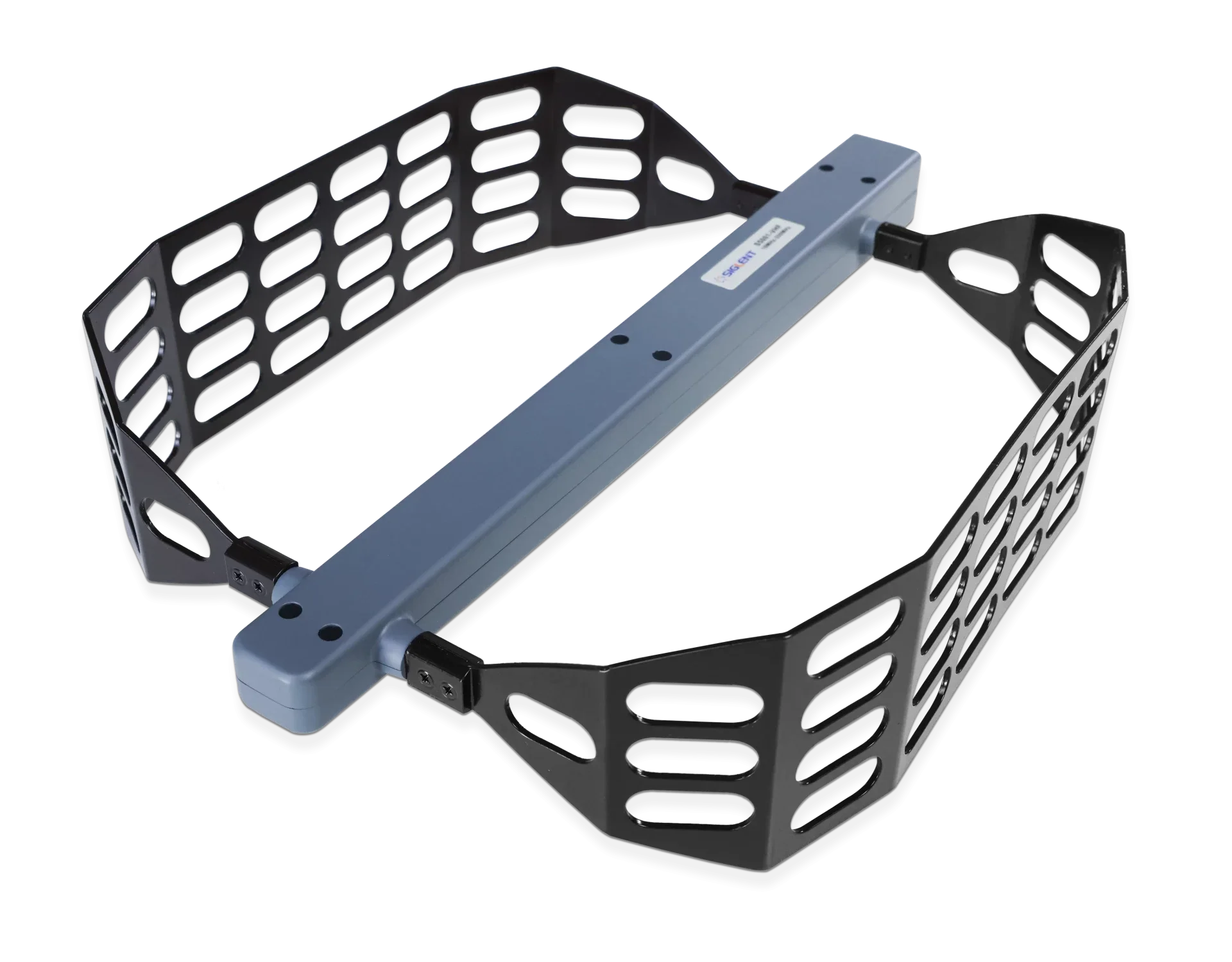

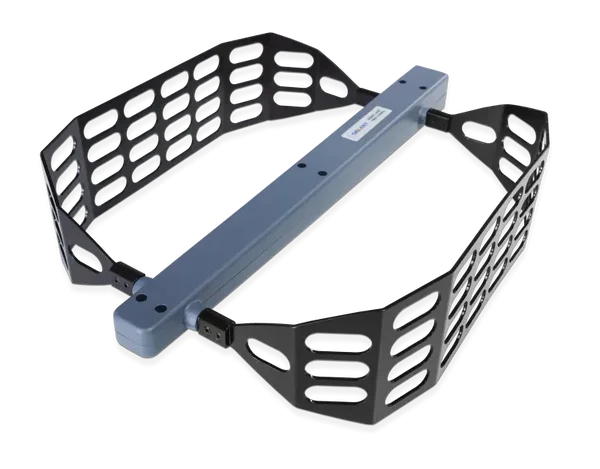

Siglent ANT-DA11 10MHz ~ 200MHz antenna and amplifier handle
The Siglent ANT-DA11 is a 10MHz ~ 200MHz antenna and comes with the amplifier handle.
ANT-DA11 Handheld Directional Antenna
The ANT-DA11 handheld directional antenna is a versatile solution designed for precise signal tracking and measurement. It covers a frequency range of 10 MHz to 200 MHz, making it suitable for applications such as EMC testing, field strength scanning, and radiation detection. This antenna includes a built-in low-noise amplifier with a gain of 12 dB (9 kHz–8 GHz) and a rechargeable battery for portable operation.
Key features include:
- Polarization Options: Horizontal and vertical.
- Interface: 50Ω N-type connection.
- Compact and Lightweight: Weighs just 0.83 kg (with the handle).
- Dynamic Testing: Features "Through" and "Amplifier" modes for handling signals of varying strengths.
Ideal for security, radio management, and maintenance tasks, the ANT-DA11 is an efficient and easy-to-use tool for professionals.
Siglent ANT-DA11 Directional Antenna
The Siglent ANT-DA11 is a part of the comprehensive directional antenna suite designed for use with the SHA800A series spectrum analyzers and other compatible devices. Below are the details of the ANT-DA11 component and its specifications:
Components
| Component | Frequency Range |
|---|---|
| ANT-DA11 | 10 MHz - 200 MHz |
Amplifier Handle
| Feature | Specification |
|---|---|
| Gain | 12 dB @ 1 GHz (typical) |
Performance Specifications
| Specification | Value |
|---|---|
| Antenna Gain | 10 dB (typical) |
| SWR | < 1:1.9 (typical) |
| Impedance | 50 Ohm, N-type female connector |
| Polarization | Horizontal and Vertical |
This directional antenna is essential for applications requiring precise directional measurements over the specified frequency range. The included amplifier handle aids in boosting weak signals, making it highly suitable for fieldwork and complex RF analysis tasks.
