Siglent ANT-DA12 200MHz ~ 500MHz antenna and amplifier handle.
€2,545.00
The Siglent ANT-DA11 is a 200MHz ~ 500MHz antenna and comes with the amplifier handle.

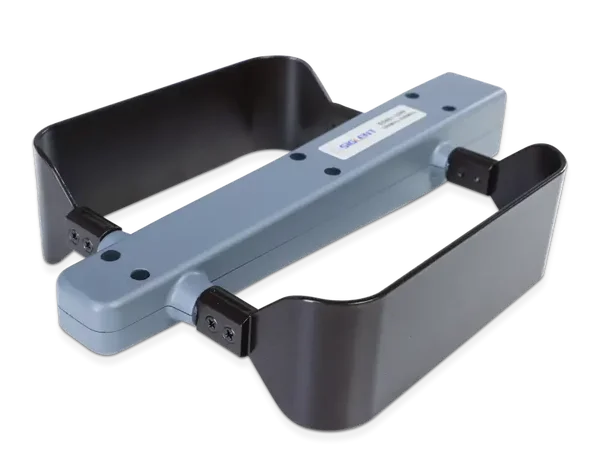

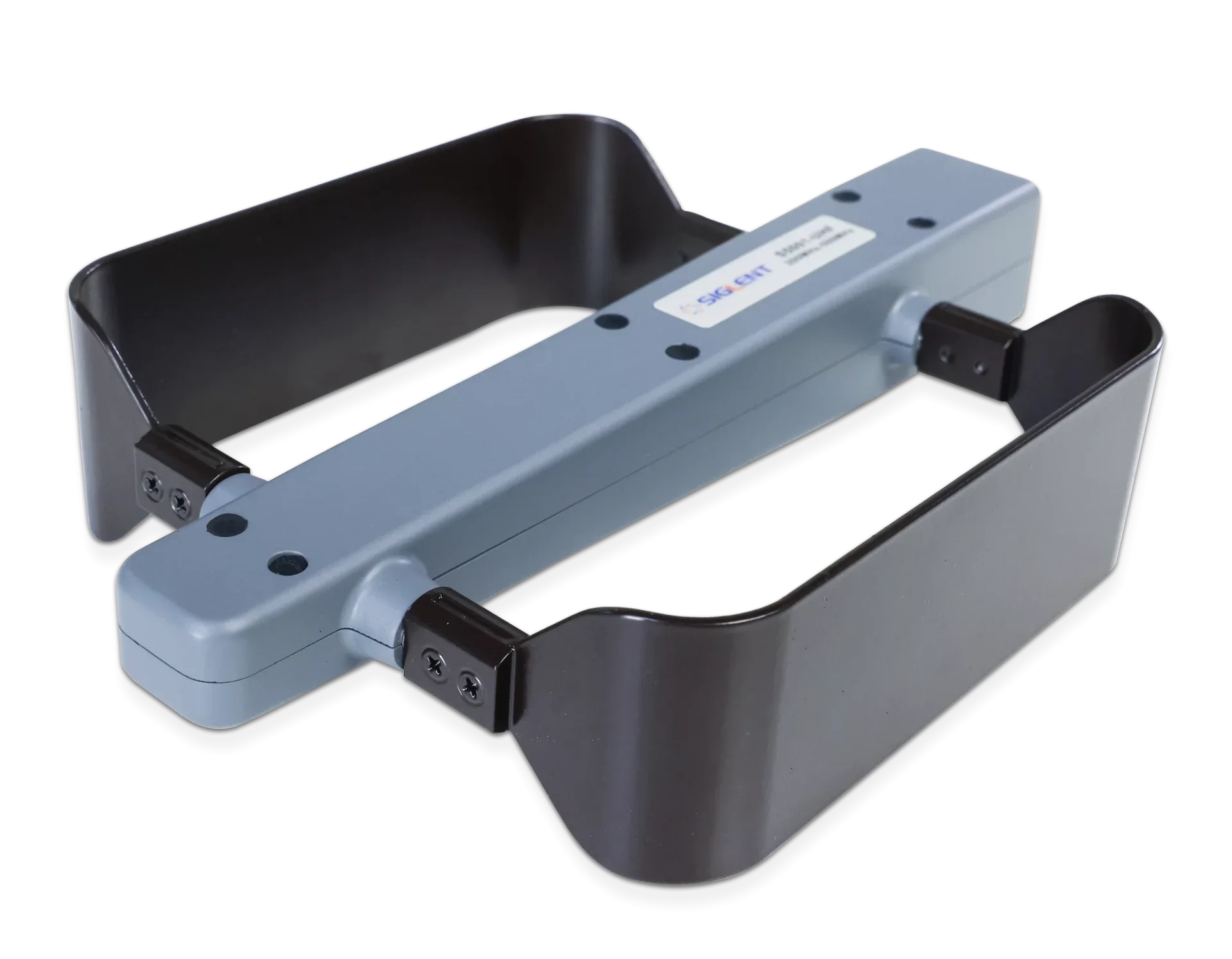

Siglent ANT-DA12 Directional Antenna
The Siglent ANT-DA12 is a part of the comprehensive directional antenna suite designed for use with the SHA800A series spectrum analyzers and other compatible devices. Below are the details of the ANT-DA12 component and its specifications:
Components
| Component | Frequency Range |
|---|---|
| ANT-DA12 | 200 MHz - 500 MHz |
Amplifier Handle
| Feature | Specification |
|---|---|
| Gain | 12 dB @ 1 GHz (typical) |
Performance Specifications
| Specification | Value |
|---|---|
| Antenna Gain | 10 dB (typical) |
| SWR | < 1:1.9 (typical) |
| Impedance | 50 Ohm, N-type female connector |
| Polarization | Horizontal and Vertical |
This directional antenna is essential for applications requiring precise directional measurements over the specified frequency range. The included amplifier handle aids in boosting weak signals, making it highly suitable for fieldwork and complex RF analysis tasks.
