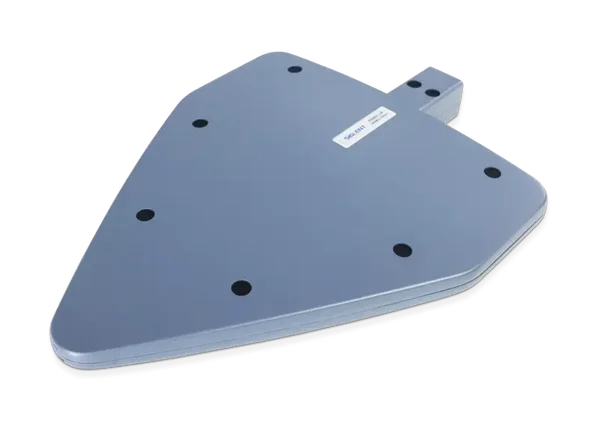

Siglent ANT-DA13 500MHz ~ 8GHz antenna with amplifier handle
€3,019.00
The Siglent ANT-DA13 is a 500MHz ~ 8GHz antenna and comes with the amplifier handle.
Siglent ANT-DA13 Directional Antenna
The Siglent ANT-DA13 is a part of the comprehensive directional antenna suite designed for use with the SHA800A series spectrum analyzers and other compatible devices. Below are the details of the ANT-DA13 component and its specifications:
Components
| Component | Frequency Range |
|---|---|
| ANT-DA13 | 500 MHz - 8 GHz |
Amplifier Handle
| Feature | Specification |
|---|---|
| Gain | 12 dB @ 1 GHz (typical) |
Performance Specifications
| Specification | Value |
|---|---|
| Antenna Gain | 10 dB (typical) |
| SWR | < 1:1.9 (typical) |
| Impedance | 50 Ohm, N-type female connector |
| Polarization | Horizontal and Vertical |
This directional antenna is essential for applications requiring precise directional measurements over the specified frequency range. The included amplifier handle aids in boosting weak signals, making it highly suitable for fieldwork and comp
