Siglent SNA6000-TDA Time-Domain analysis option

Siglent SNA6000-TDA Time-Domain analysis option
€1,915.00

The Siglent SNA6000-TDA Time-Domain analysis license option for the SNA6000A series Vector Network Analyzer.

The SNA6000-TDA Time-Domain Analysis (TDA) option for the SNA6000A series vector network analyzers allows users to perform time-domain measurements by transforming frequency-domain data into time-domain responses. Key features include:

  1. Time-Domain Transformation: Converts S-parameters from the frequency domain to the time domain to analyze reflections and transmission over time.
  2. Fault Location: Identifies discontinuities, faults, or impedance mismatches in transmission lines and networks by displaying signal reflections versus time or distance.

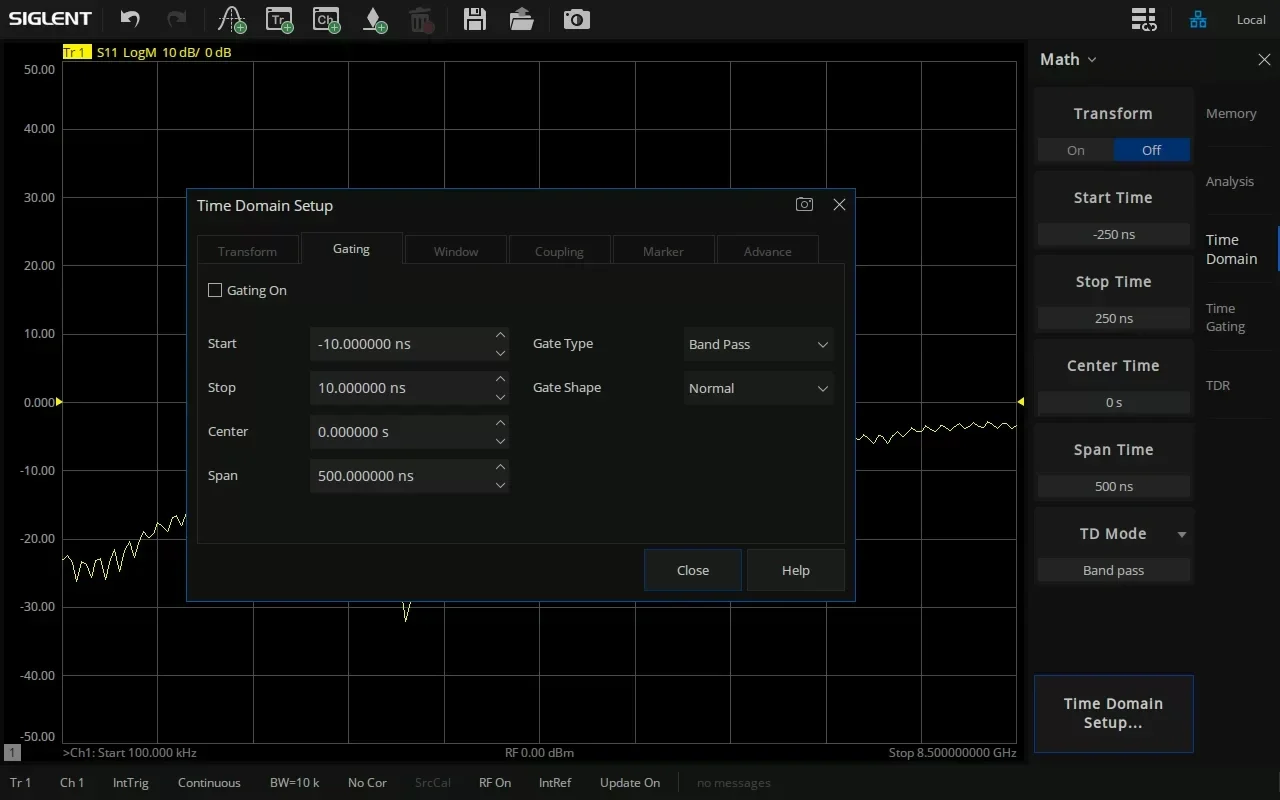

  3. Gating Function: Isolates specific sections of a network to focus on particular reflections or transmissions for more detailed analysis.
  4. Windowing Options: Provides different windowing functions to optimize the time-domain response and minimize distortion.

This option is ideal for cable testing, signal integrity analysis, and locating defects in transmission lines and RF systems
