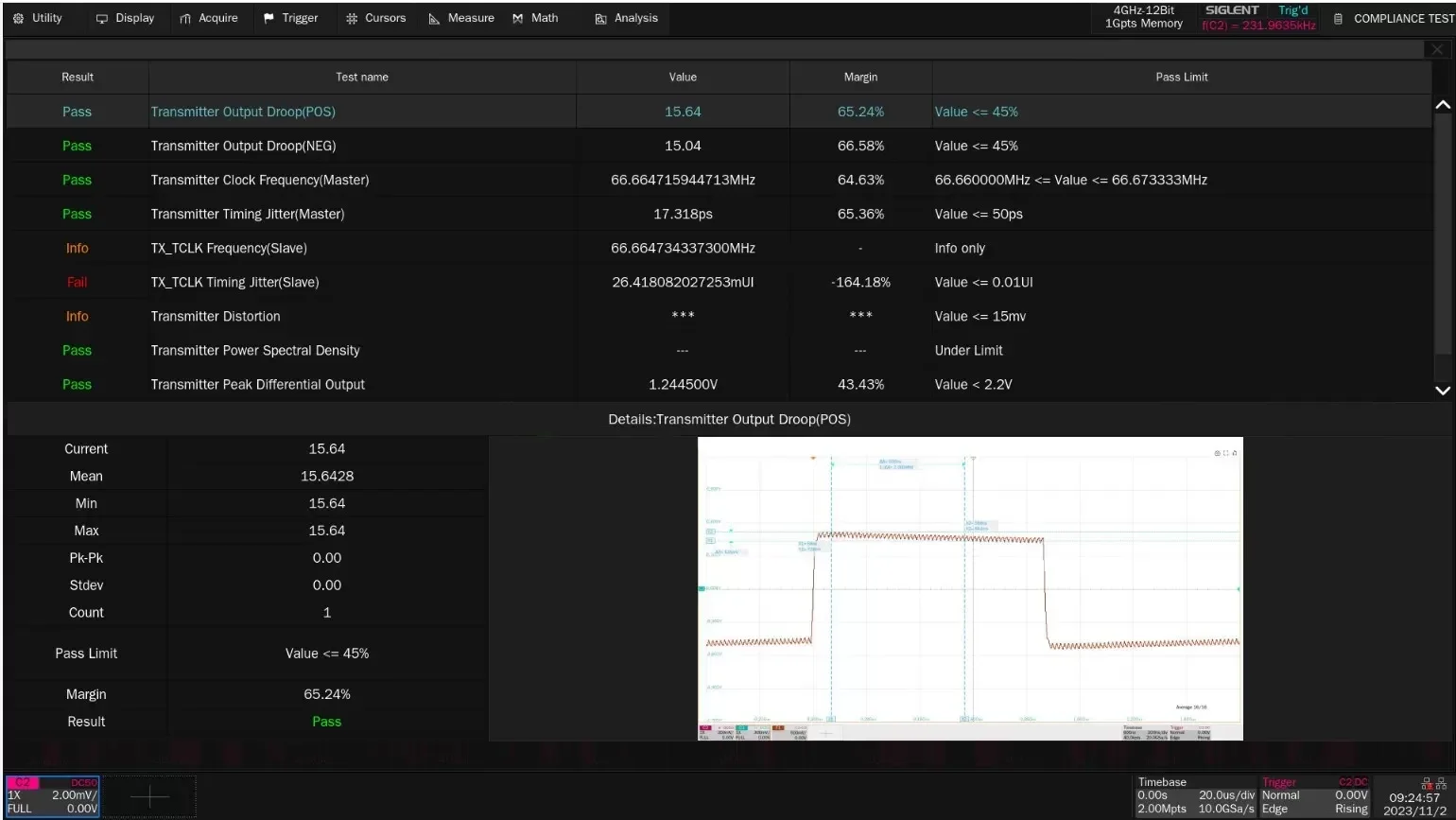

Siglent SDS7000A-CT-1000BASE-T1 compliance test (software)

The SDS7000A-CT-1000BASE-T1 option enables the decoding and analysis of 1000BASE-T1 automotive Ethernet signals for the SDS7000A series digital oscilloscopes. Key features include:

1. 1000BASE-T1 Ethernet Decoding: Supports real-time decoding of 1000BASE-T1 Ethernet frames, which are widely used in automotive applications, especially in high-speed in-vehicle communication systems.
2. Advanced Triggering: Provides triggering on specific 1000BASE-T1 frames, events, or errors, allowing for efficient isolation of issues during signal analysis.
3. Error Detection: Identifies errors such as CRC mismatches or frame misalignment, helping engineers to quickly diagnose and troubleshoot communication problems in automotive Ethernet networks.
4. Detailed Protocol Analysis: Offers comprehensive insight into the Ethernet protocol stack, ideal for performance evaluation, debugging, and validation in automotive communication environments.

This option is essential for automotive engineers working on high-speed in-vehicle networks and advanced systems like autonomous driving and vehicle-to-everything (V2X) communication​
