Siglent SDS7000A-USB2 decode (software)

Siglent SDS7000A-USB2 decode (software)
€540.00

Siglent SDS7000A-USB2 is a USB 2.0 decode option for the SDS7000A series Oscilloscope.

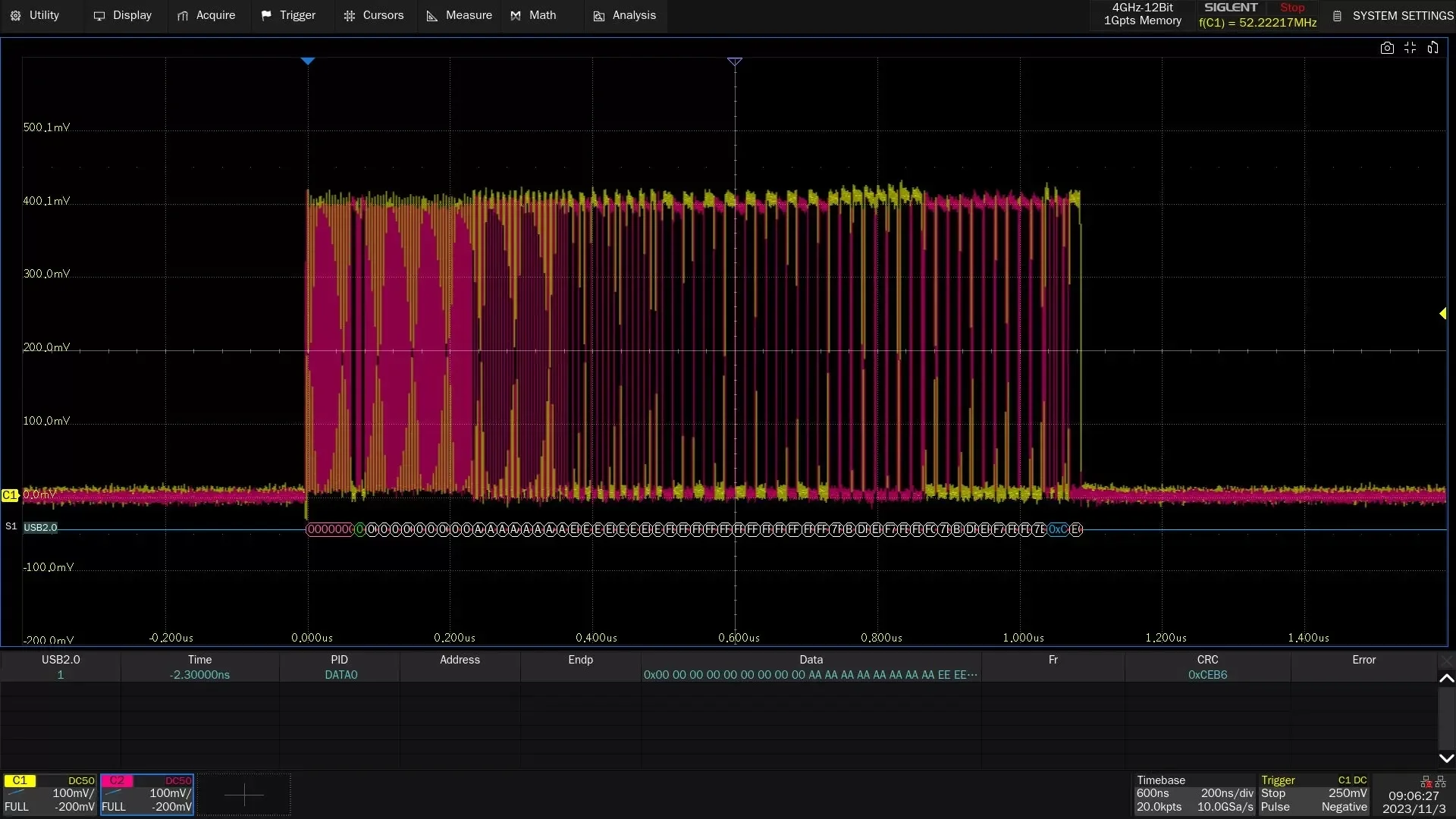

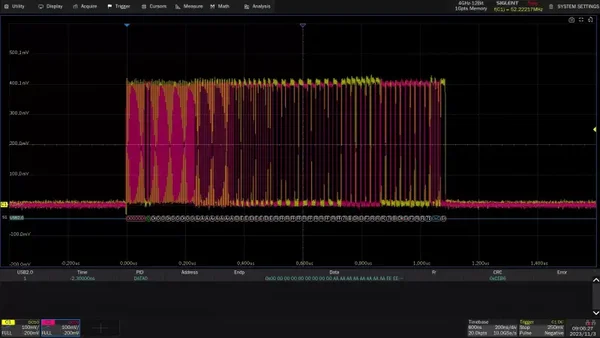

The SDS7000A-USB2 option enables USB 2.0 protocol decoding and analysis for the SDS7000A series digital oscilloscopes. Key features include:

  1. USB 2.0 Protocol Decoding: Decodes USB 2.0 signals, showing packet data, addresses, and control fields for in-depth analysis of USB communication.
  2. Advanced Triggering: Supports triggering on specific USB 2.0 events or data packets, such as start of frame or errors, for precise signal capture.
  3. Error Detection: Identifies errors like CRC and protocol violations in USB 2.0 communication, aiding in troubleshooting and debugging.
  4. Real-Time Protocol Analysis: Provides comprehensive insight into USB 2.0 data streams, making it ideal for performance analysis and debugging of USB devices.

This option is essential for engineers working with USB 2.0 interfaces, helping to validate, troubleshoot, and optimize USB communication systems​
