Siglent SDS3000HD-FlexRay license option

Siglent SDS3000HD-FlexRay license option
€329.00

Unlocks the SDS3000HD-FlexRay option for the SDS3000X HD series oscilloscopes.

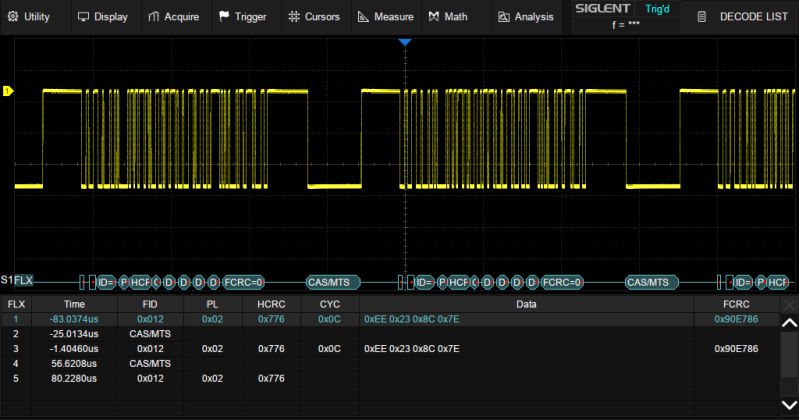

The SDS3000HD-FlexRay option enables FlexRay protocol decoding and analysis for the SDS3000X HD series digital oscilloscopes. Key features include:

  1. FlexRay Protocol Decoding: Decodes FlexRay frames, a high-speed automotive communication protocol, and displays data in a clear and readable format.
  2. Advanced Triggering: Provides triggering on specific FlexRay events, such as TSS (Transmission Start Sequence), frame headers, IDs, or errors, enabling precise signal capture.
  3. Error Detection: Detects and highlights errors like CRC, frame, or synchronization faults within FlexRay communication.
  4. Customizable Baud Rate: Supports baud rates of 2.5 Mb/s, 5.0 Mb/s, 10.0 Mb/s, or custom configurations to match various FlexRay systems.

This option is essential for automotive engineers analyzing and troubleshooting high-speed in-vehicle networks.
