Siglent SDS3000HD-I2S license option

The SDS3000HD-I2S option enables I2S (Inter-IC Sound) protocol decoding and analysis for the SDS3000X HD series digital oscilloscopes.

Key Features:

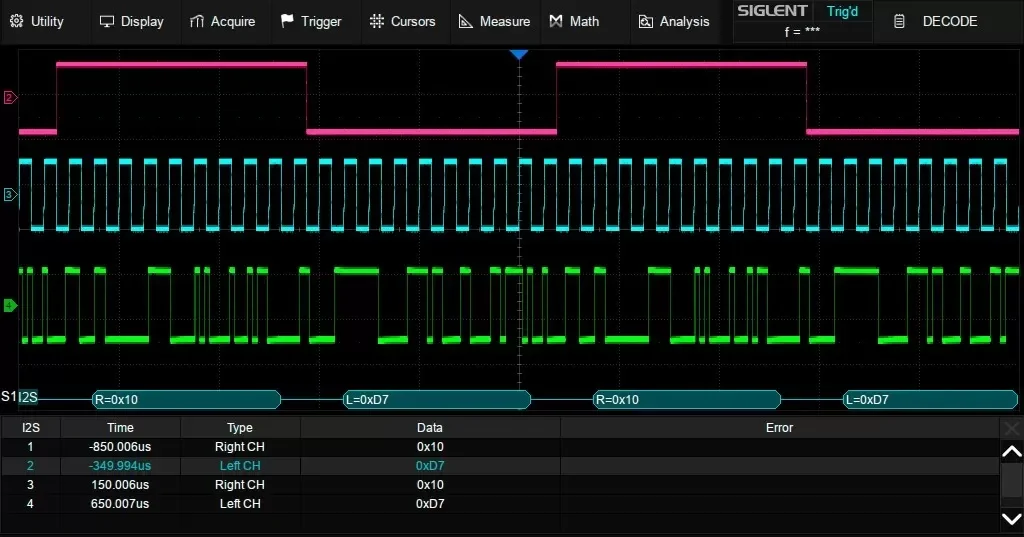

1. I2S Protocol Decoding: Decodes I2S signals, showing audio data, word select, and clock signals in an easily readable format.
2. Advanced Triggering: Supports triggering on specific I2S events such as Data, Mute, Clip, Glitch, Rising Edge, and Falling Edge for precise signal analysis.
3. Customizable Settings: Allows configuration of audio variants (I2S, LJ, RJ), bit order (MSB or LSB), and data length (up to 32 bits).
4. Time-Correlated Analysis: Provides real-time monitoring of audio data and synchronization with other analog or digital signals.

This option is ideal for engineers working on digital audio systems, ensuring accurate testing and debugging of audio communication​
