Siglent SDS3000HD-CANFD license option

Siglent SDS3000HD-CANFD license option
€329.00

Unlocks the SDS3000HD-CANFD option for the SDS3000X HD series oscilloscopes.

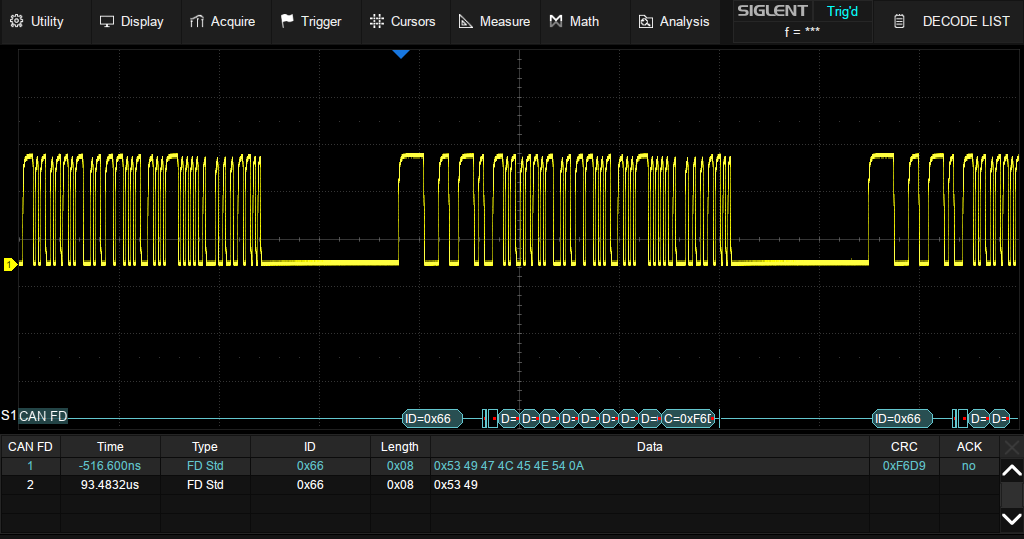

The SDS3000HD-CANFD option enables CAN FD (Controller Area Network with Flexible Data Rate) protocol decoding and analysis for the SDS3000X HD series oscilloscopes.

Key Features:

  1. CAN FD Protocol Decoding: Decodes CAN FD frames, including arbitration and data phases, for detailed analysis of modern automotive and industrial systems.
  2. Advanced Triggering: Supports triggering on specific CAN FD events, such as frame start, remote, ID, ID+Data, or errors like CRC and bit stuffing errors.
  3. Error Detection: Highlights errors in CAN FD communication, aiding in troubleshooting and performance optimization.
  4. Customizable Baud Rates: Supports a wide range of nominal (up to 1 Mb/s) and data baud rates (up to 10 Mb/s) to match various CAN FD configurations.
  5. Comprehensive Data Analysis: Displays frame type, ID, data length, CRC, and acknowledgment fields for in-depth protocol analysis.

This option is essential for engineers working on high-speed automotive and industrial communication systems.
