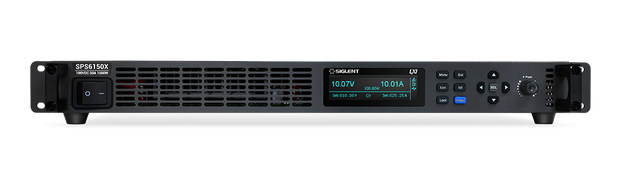

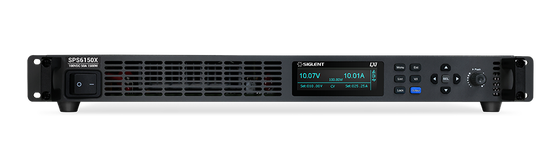

Siglent SPS6150X One Channel, 100V/50A/1500W Switching DC Power Supply

The SPS6000X Series is a programmable switching DC power supply with a wide range of single output and constant power features. This series includes two models, the SPS6225X and SPS6150X, which feature rated output voltages and currents of 200 V / 25 A and 100 V / 50 A, with a maximum output power of 1500 W. Users can connect up to five SPS6000X chassis of the same model in parallel to expand the output power to meet different application requirements. The SPS6000X series has a high brightness 3.12 inch OLED display, a user friendly interface that enables easy control and performance monitoring, and excellent performance indicators. The minimum resolution is 10 mV / 10 mA. The output voltage and current rise times are adjustable. It has two output modes: Constant voltage and constant current. It also supports list sequence programming mode to easily perform voltage or current step profiles. Safety features include over voltage, over current, power limit, and over temperature protection. For remote control operation, the SPS6000X includes LAN / USB communication interfaces, an analog control interface, and a convenient web browser control.

The Siglent SPS6150X is a high-performance programmable DC power supply, offering 200 V / 25 A output with a 1500 W maximum power rating. Designed for precision and reliability, it features a wide voltage and current range with constant power output, adjustable voltage and current slew rates, and a low noise design. Key highlights include:

High Resolution: 10 mV / 10 mA setting and readback.
Dynamic Performance: Load transient recovery < 2.5 ms.
Advanced Control: CV and CC priority modes, external analog control, and list sequence programming.
Safety: Includes OVP, OCP, and OTP protection mechanisms.
Connectivity: USB, LAN, and optional GPIB interfaces with embedded web server for remote control.
Compact Design: 1U rack height, 19-inch width, and fan-cooled operation.

Ideal for laboratories, automotive electronics, LED testing, and other demanding applications, the SPS66225X ensures precise, efficient, and versatile performance for modern testing environments.

Constant Output Power

In constant output power mode, the voltage and current range are switched automatically to maximize the voltage and current without sacrificing the supply’s output power.

Adjustable Output Voltage, Current rising/falling Slew Rate

The power supply supports custom rise/fall slew rates of both voltage and current to verify the performance of the device under test as the voltage/current changes. This feature can effectively prevent the damage caused by inrush current to the DUT in applications such as the testing of capacitive current absorbing devices.

Key Features of the SPS6150X

Rated Voltage/Current/Power: 100 V / 50 A / 1500 W.
Wide Output Range: Supports high-efficiency operation with constant power.
CV/CC Priority Modes: Selectable constant voltage or constant current operation for optimal protection.
Transient Recovery Time: Load change recovery within <2.5 ms (50% to 100% load).
Adjustable Slew Rates: Customizable voltage and current rise/fall times.
Resolution: 10 mV and 10 mA for setting and readback.
Built-In Discharge Circuit: Ensures faster output voltage reduction.
Remote Sense Function: Compensates for lead resistance errors.
List Function: 50 programmable steps with USB import for test sequences.
Safety Protections: OVP, OCP, LPP, and OTP included.
High-Brightness OLED Display: 3.12-inch wide-view angle display.
Interfaces: USB, LAN, optional USB-GPIB, and embedded Web Server for remote control.
Compact Design: 1U rack height, 19-inch width, suitable for rack mounting.
Parallel Operation: Up to 5 units for increased output power.

This combination of features makes the SPS66225X highly versatile and suitable for various applications.

Built-in Discharge Circuit

The power supply is designed with a discharge circuit in parallel with the output terminal, which can be equivalent to a parallel resistance. When the power is turned off and the load is disconnected, the discharge circuit will discharge the power in the output filter capacitor.

Model	SPS6225X	SPS6150X
Rated output voltage	200 V	100 V
Rated output current	25 A	50 A
Total rated output power	1500 W	1500 W
Power Ratio	3.33	3.33
C.V Mode
Line Regulation	40 mV (From 90 ~ 132 Vac or 170 ~ 265 Vac, constant load)	5 mV (From 90 ~ 132 Vac or 170 ~ 265 Vac, constant load)
Load Regulation	100 mV (From no load to full load, constant input voltage)	50 mV (From no load to full load, constant input voltage)
Ripple and Noise⁽¹⁾	(Noise bandwidth 20 MHz; Ripple bandwidth 5 Hz ~ 1 MHz)
RIPPLE (pk to pk) @220 Vac Input	220 mV	120 mV
RMS RIPPLE @220 Vac Input	39 mV	30 mV
Voltage programming Accuracy⁽²⁾	0.1% ± 10 mV	0.1% ± 10 mV
Voltage programming resolution	10 mV	10 mV
Voltage Readback Accuracy⁽²⁾	0.1% ± 20 mV	0.1% ± 20 mV
Voltage Readback resolution	10 mV	10 mV
Temperature coefficient	100 ppm/°C from rated output voltage following 30-minute warm-up.	100 ppm/°C from rated output voltage following 30-minute warm-up.
Remote compensation voltage (single wire)	0.6 V	0.6 V
Rise Time	10% ~ 90% of rated output voltage, rated resistance load	10% ~ 90% of rated output voltage, rated resistance load
Rated Load	30 ms	30 ms
No Load	30 ms	30 ms
Fall Time	90% ~ 10% of rated output voltage, rated resistance load	90% ~ 10% of rated output voltage, rated resistance load
Rated Load	15 ms	15 ms
Output capacitance	1100 uF	1760 uF
Transient response time	2.5 ms (Time for recovery to within 0.5% of its rated output after the transient from 10% to 90% of the rated output power)	2.5 ms (Time for recovery to within 0.5% of its rated output after the transient from 10% to 90% of the rated output power)
C.C Mode
Line Regulation	40 mA (From 90 ~ 132 Vac or 170 ~ 265 Vac, constant load)	30 mA (From 90 ~ 132 Vac or 170 ~ 265 Vac, constant load)
Load Regulation	40 mA (From no load to full load, constant input voltage)	50 mA (From no load to full load, constant input voltage)
r.m.s⁽³⁾	30 mA	40 mA
Current Setting Accuracy	0.2% ± 30 mA	0.2% ± 30 mA
Current programming resolution	10 mA	10 mA
Current Readback Accuracy	0.2% ± 40 mA	0.2% ± 40 mA
