Siglent SHA860-PU Pulse Profile Analysis license option

The Siglent SHA860A Series Handheld Signal Analyzer with the SHA860-PU license, enables advanced pulse profile analysis for accurate characterization of pulsed RF signals. This option is essential for radar testing, communication systems, and pulse-modulated device analysis.

Key Features:

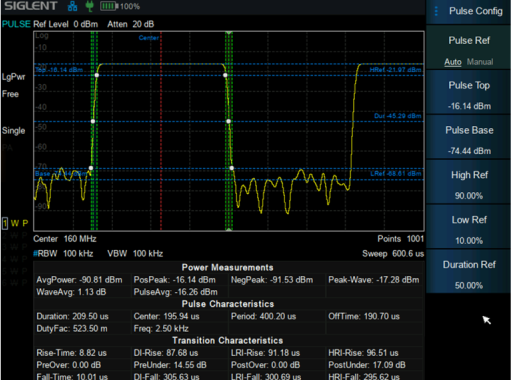

• Detailed Pulse Measurements: Measure pulse width, rise/fall time, pulse period, duty cycle, and pulse center timing with high precision.

• Advanced Overshoot/Undershoot Analysis: Quantify pre- and post-transition overshoots and undershoots to evaluate pulse signal quality.

• Multi-Trace Display: Supports up to 6 traces with various detectors including Positive Peak, Negative Peak, Sample, Average, and Normal.

• Flexible Analysis: View and analyze key parameters such as peak power, trace average, wave average, and pulse average.

Application Areas:

• Radar system development and maintenance

• Pulsed communication systems and telemetry

• RF component and amplifier testing

• Military and aerospace signal analysis

Seamless Software Activation:
The SHA860-PU is a software license upgrade, requiring no hardware changes and integrating directly into the SHA860A's intuitive interface.

Equip your analyzer with the SHA860-PU license to achieve high-resolution, accurate pulse signal analysis — a must-have tool for professionals working with time-sensitive RF systems.
