Siglent SHA860-CAT Cable and Antenna Test license option

Upgrade the Siglent SHA860A Series Handheld Signal Analyzer with the SHA860-CAT license, enabling powerful Cable and Antenna Test (CAT) capabilities. This option is essential for ensuring the performance and integrity of RF transmission lines in the field or lab.

Key Features:

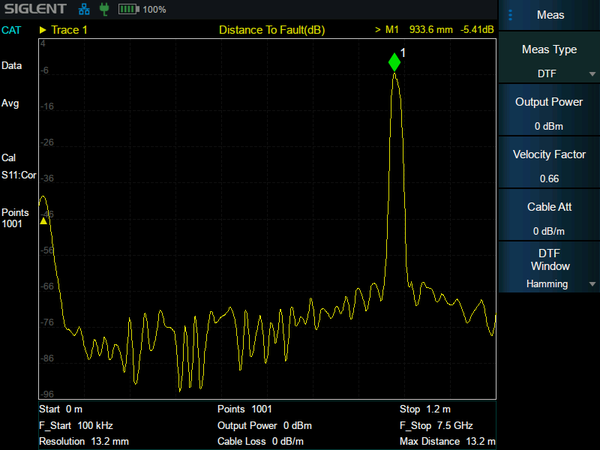

• Distance to Fault (DTF): Locate cable faults and impedance mismatches with precise distance measurements.

• Time Domain Reflectometry (TDR): Identify fault types and discontinuities across cable runs.

• Comprehensive S-Parameter Testing: Measure Return Loss, VSWR, Cable Loss, and Insertion Loss with configurable sweep settings.

• Flexible Calibration Options: Includes Open, Short, Response, and Full 1-Port (OSL) calibration for enhanced accuracy.

• Graphical Results: Display results in Log Mag, Lin Mag, VSWR, Impedance, and other intuitive formats.

Application Areas:

• Antenna system installation and maintenance

• Cable fault detection and troubleshooting

• Base station and tower inspections

• RF feedline diagnostics for telecom and broadcast

Software-Based Activation:
The SHA860-CAT is a license upgrade, activated via software without any hardware changes. It integrates seamlessly into the SHA860A interface for immediate use.

Add the SHA860-CAT license to your analyzer for professional-grade cable and antenna testing, ensuring reliable, high-performance RF systems.
