Siglent SHA860-VNA Vector Network Analysis license option

Unlock precision Vector Network Analysis (VNA) capabilities on the Siglent SHA860A Series Handheld Signal Analyzer with the SHA860-VNA license. This powerful software upgrade enables accurate S11 and S21 measurements for evaluating the performance of RF components, cables, filters, and antennas.

Key Features:

• S11 & S21 Parameter Measurements: Measure reflection and transmission characteristics with high dynamic range and accuracy.

• Wide Frequency Range: Supports measurements from 100 kHz to 3.6 GHz (or up to 7.5 GHz with SHA862A).

• High Dynamic Range: Up to 114 dB (typical) S21 dynamic range for demanding applications.

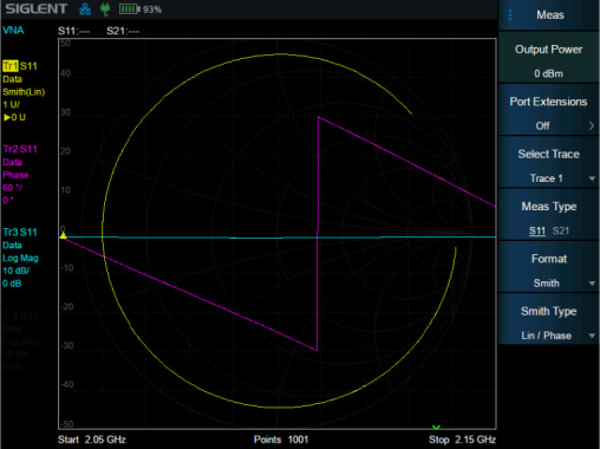

• Comprehensive Display Formats: Includes Log/Linear Magnitude, Phase, Group Delay, SWR, Smith Chart, and Polar Charts.

• User-Friendly Interface: Supports up to 4 traces, multiple markers, math functions, and trace hold for comparative analysis.

• Calibration Options: Full 1-Port and Enhanced Response calibrations with support for standard and advanced calibration kits.

Application Areas:

• RF component testing (amplifiers, filters, attenuators)

• Antenna matching and design verification

• Cable loss and transmission line evaluation

• Impedance analysis and network design

Software-Based Upgrade:
The SHA860-VNA is a license-activated option that requires no additional hardware. It integrates seamlessly into the SHA860A platform for immediate use.

Enhance your RF analysis toolkit with the SHA860-VNA license — an essential upgrade for engineers, technicians, and researchers performing precision network analysis in the lab or field.
