Siglent SHA860-MAP Outdoor - Indoor Map license option

Upgrade for the Siglent SHA860A Series Handheld Signal Analyzer with the SHA860-MAP license, enabling advanced mapping and geolocation capabilities for both outdoor and indoor RF measurements. This option is essential for professionals conducting coverage testing, signal strength logging, and drive/walk tests.

Key Features:

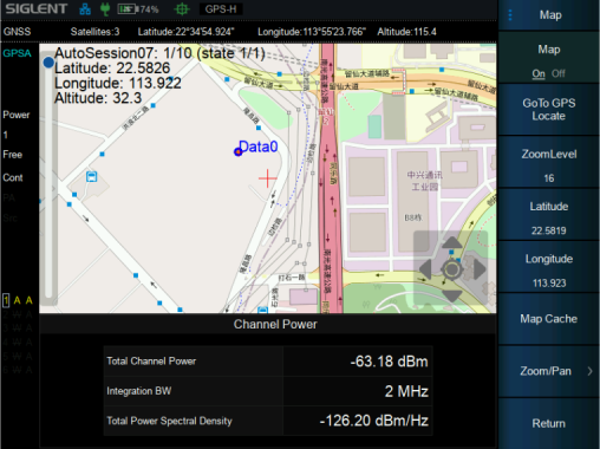

• Outdoor Mapping Support: Integrates with Google Map tiles (via EasyMap software) for real-time outdoor signal plotting.

• Indoor Floor Plan Mapping: Import PNG or JPEG images for layout-based signal tracking in indoor environments.

• Real-Time Data Logging: Overlay RF measurement results (e.g., signal strength, PCI, RSRP, EVM) with GPS data during testing.

• Playback & Review: Recorded data can be reviewed post-measurement to assess coverage, dead zones, and interference patterns.

• Flexible Display Options: View PCI, RSRP, SINR, power levels, frequency/time errors, and constellation quality across mapped routes.

Application Areas:

• Wireless coverage testing in public spaces and buildings

• Network optimization and deployment verification

• Indoor signal strength surveys (offices, factories, campuses)

• Geospatial visualization of 5G and LTE measurement results

Software-Based Activation:
The SHA860-MAP license is a software-only upgrade, requiring no hardware changes. Compatible with optional GPS functionality (SHA860-GPS) and EasyMap PC software for tile management and data export.

Enhance your RF analysis workflow with SHA860-MAP, delivering clear, georeferenced insight into your network’s real-world performance.
