Siglent SNA5014A 9 kHz ~ 8.5 GHz Vector Network Analyzer

CHOOSE A FREE OPTION

€21,700.00

SNA5014A

Quantity

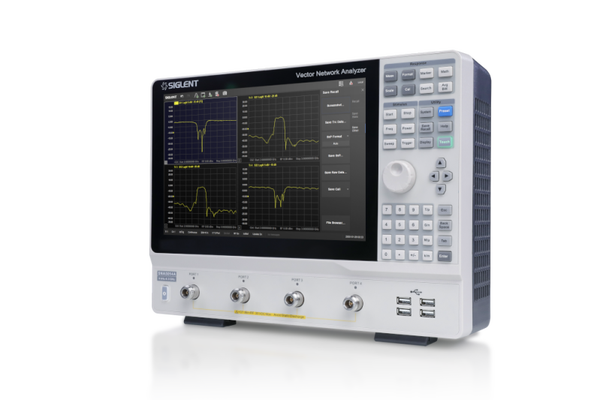

The SIGLENT SNA5014A is the 9 kHz ~ 8.5 GHz Vector Network Analyzer with support for 4 ports scattering-parameter, differential-parameter, and time-domain parameter measurements.

Purchase a new SNA5000A instrument and select one free analysis option for your application.

The Siglent SNA5014A 9 kHz - 4.5 GHz VNA is a effective instrument for determining the Q-factor, bandwidth and insertion loss of a filter, It features impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal / insertion adjustments. The SNA5014A hase five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Model SNA5002A SNA5012A SNA5004A SNA5014A

Frequency range 9 kHz- 4.5 GHz 9 kHz- 8.5 GHz 9 kHz- 4.5 GHz 9 kHz- 8.5 GHz

Series	Frequency Range	Ports	Dynamic Range	Trace Noise	Range of Output
SNA5002A	9 kHz~4.5 GHz	2	125 dB	0.003 dB rms,0.03° rms	-55 ~ +10 dBm
SNA5004A	9 kHz~4.5 GHz	4	125 dB	0.003 dB rms,0.03°rms	-55 ~ +10 dBm
SNA5012A	9 kHz~8.5 GHz	2	125 dB	0.003 dB rms,0.03°rms	-55 ~ +10 dBm
SNA5014A	9 kHz~8.5 GHz	4	125 dB	0.003 dB rms,0.03°rms	-55 ~ +10 dBm

SNA Multi-window display:

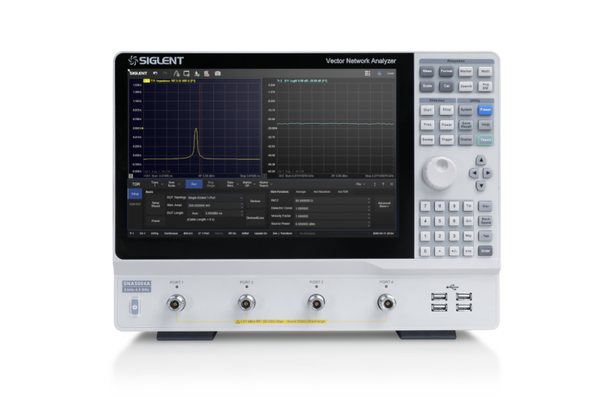

Enhanced Time-Domain analysis(TDR)

Features

Frequency range: 9 kHz - 8.5 GHz
Frequency resolution: 1 Hz
Level resolution: 0.05 dB
Range of IFBW: 10 Hz~3 MHz
Setting range of output level: -55 dBm ~ +10 dBm
Dynamic range: 125 dB
Types of calibration: Response calibration, Enhanced Response calibration, Full-one port
calibration, Full-two port calibration, Full-three port calibration, Full-four port
calibration, TRL calibration
Types of measurement: Scattering-parameter measurement, differential-parameter measurement,
receiver measurement, time-domain parameter analysis, limit test, ripple test,
impedance conversion, fixture simulation, adapter removal/insertion
Support Bias-Tees
Interface: LAN, USB Device, USB Host(USB-GPIB)
Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-
11/Socket/Telnet/WebServer
12.1-inch touch screen
Video output: HDMI
