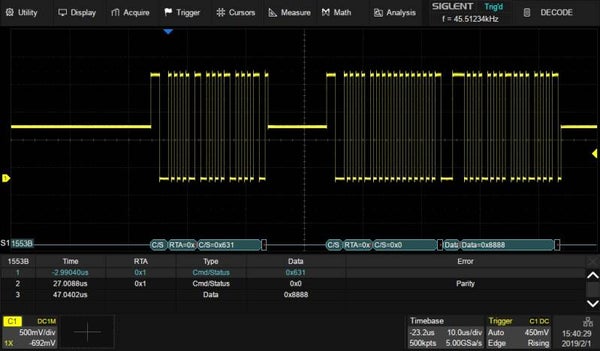

SDS6000Pro-1553B Mil-1553B decoding activation license

SDS6000Pro-1553B Mil-1553B decoding activation license
€380.00

the Siglent SDS6000Pro-1553B is a trigger & decode for the SDS6000A series oscilloscopes

The SDS6000Pro-1553B option for the SDS6000A series digital oscilloscopes adds support for MIL-STD-1553B protocol decoding and analysis, which is widely used in military and aerospace applications for communication between avionics systems. Key features include:

  1. MIL-STD-1553B Protocol Decoding: Decodes 1553B bus signals, displaying command and data words in an easily readable format.
  2. Advanced Triggering: Supports triggering on specific 1553B protocol events, such as command, status, or data words, for detailed analysis.
  3. Error Detection: Identifies and flags errors within 1553B communications, aiding in troubleshooting and validation.
  4. Time-Correlated Analysis: Allows time-correlation of 1553B signals with other analog or digital signals, providing a comprehensive view of the system behavior.

This option is essential for engineers working in the military and aerospace sectors to analyze and troubleshoot 1553B communications​
