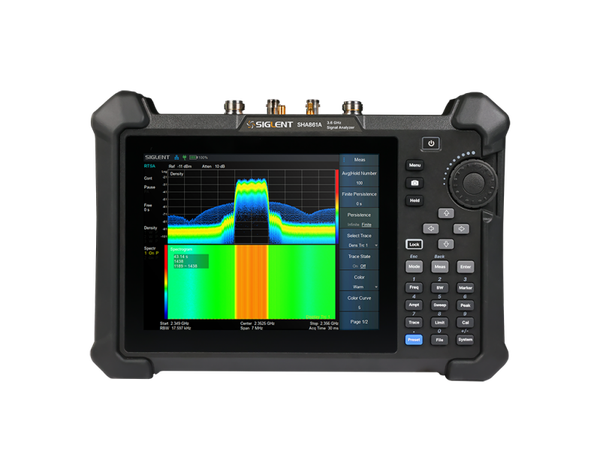

Siglent SHA861A 9 kHz–3.6 GHz Handheld Signal Analyser

NEW

€8,520.00

Quantity

The Siglent SHA861A is a 9 kHz–3.6 GHz handheld spectrum analyzer with -165 dBm/Hz DANL, 110 MHz real-time analysis, and 5G NR/LTE OTA testing. It offers VNA (S11/S21), cable and antenna tests, EMI measurements, and advanced modulation analysis. Rugged and portable with an 8.4" touchscreen, GPS mapping, and 2.5-hour battery for powerful RF fieldwork.

The Siglent SHA861A is a powerful and portable signal analyzer designed for modern wireless communication and general RF field analysis. Offering laboratory-grade performance in a compact, rugged form factor, it is ideal for both field engineers and RF specialists who demand versatility and precision.

With a frequency range from 9 kHz to 3.6 GHz, the SHA861A covers a wide array of wireless communication bands, making it perfectly suited for emerging technologies like 5G NR and LTE. Its displayed average noise level (DANL) reaches an impressive -165 dBm/Hz, ensuring sensitive signal detection even in noisy environments.

Packed with a host of advanced functions, the SHA861A enables deep analysis of modern signals:

Real-Time Spectrum Analysis with 110 MHz bandwidth (option), offering a fast 3.51 µs 100% POI for capturing even the shortest transients.
5G NR and LTE OTA Testing, supporting multi-PCI, multi-beam analysis, constellation diagrams, and EVM measurements.
Comprehensive Modulation Analysis (AM/FM/PM for analog, ASK/FSK/PSK/MSK/QAM for digital).
Field Strength Measurements, EMI pre-compliance testing, and cable and antenna diagnostics using Distance-To-Fault (DTF) and TDR capabilities.
Integrated Vector Network Analysis (S11/S21) and independent CW Source up to 3.6 GHz.
Rugged portability with an 8.4-inch multi-touch screen, 2.5-hour battery life, and a compact 3.2 kg weight.

In short, the SHA861A offers unparalleled measurement versatility in a field-friendly package, ready to tackle today's RF challenges.

5G NR OTA Measurement

During 5G base station deployment, the SHA860A’s 5G NR OTA mode demodulates signals to measure PCI, SSB index, frequency error, and EVM, displayed in constellation diagrams. This ensures optimal 5G NSA performance and smooth LTE-5G coordination.

Real-Time Spectrum Analysis

The SHA860A captures signals as short as 3.51 µs with 110 MHz real-time bandwidth and 300,000 FFT/s. Features like FMT, Density, 3D, Spectrogram, and PvT displays enable advanced signal analysis for interference hunting and 5G spectrum monitoring.

Siglent SHA861A Key Features

Frequency Range 9 kHz~3.6 GHz usable
Displayed Average Noise Level (DANL) -165 dBm/Hz
SSB Phase Noise -104 dBc/Hz.@1 GHz, 10 kHz offset
Analysis Bandwidth 40/110 MHz
5G NR OTA Measurement, multi-PCI and multi-beam analysis
LTE FDD and TDD OTA Measurement, multi-PCI analysis
Channel Power, Occupied Bandwidth, Adjacent Channel Power, SHI and TOI etc.
IQ Data Acquisition in 110 MHz Band Width
Real-Time Spectrum Analysis in 110 MHz Band Width, 100% POI time 3.51 μs
Pulse Profile Measurements
Indoor and outdoor map for Coverage Mapping
Trace Recording/Playback with GNSS location
AM/FM/PM Analog Modulation Analysis, and ASK/FSK/PSK/MSK/QAM Digital Modulation Analysis
AM/FM/PM Analog Modulation Audio Tune & Listening
Field Strength (EMF) Measurements and EMI Measurements
Independent Source to 7.5 GHz
Vector Network Analyzer, 1-Path 2-Ports S11 and S21 Network Analysis
S11 directionality 40 dB, S21 dynamic 114 dB
Cable and Antenna Test, Distance To Fault and Time Domain Analysis
TTA test, bias out 12V to 32V DC
Chargeable Battery working time 2.5 hours, 3.2 kg net weight
8.4 lnch Multi-Touch Screen, mouse and keyboard supported

LTE TDD/FDD OTA Measurement

The LTE OTA feature captures PCI, sector ID, frequency error, time offset, sync status, power levels, and EVM with constellation diagrams. It helps technicians assess signal quality and optimize network performance across multiple cells.

SHA861A
Frequency Range	9 kHz~3.6 GHz
Resolution Bandwidth (RBW)	1 Hz ~ 10 MHz, in 1-3-10 sequence
Phase Noise	-104 dBc/Hz
Total Amplitude Accuracy	±0.7 dB
Display Average Noise Level (DANL)	-165 dBm/Hz
